mrpt::opengl::CSetOfObjects Class Reference

Detailed Description

A set of object, which are referenced to the coordinates framework established in this object.

It can be established a hierarchy of "CSetOfObjects", where the coordinates framework of each one will be referenced to the parent's one. The list of child objects is accessed directly as in the class "COpenGLScene"

See also
opengl::COpenGLScene

Definition at line 28 of file CSetOfObjects.h.

#include <mrpt/opengl/CSetOfObjects.h>

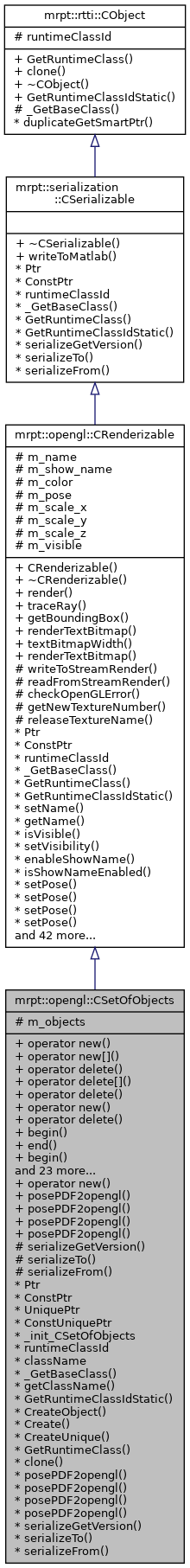

Inheritance diagram for mrpt::opengl::CSetOfObjects:
Inheritance graph

Public Types

using const_iterator = CListOpenGLObjects::const_iterator

using iterator = CListOpenGLObjects::iterator


Public Member Functions

voidoperator new (size_t size)

voidoperator new[] (size_t size)

void operator delete (void *ptr) noexcept

void operator delete[] (void *ptr) noexcept

void operator delete (void *memory, void *ptr) noexcept

voidoperator new (size_t size, const std::nothrow_t &) noexcept

void operator delete (void *ptr, const std::nothrow_t &) noexcept

const_iterator begin () const

const_iterator end () const

iterator begin ()

iterator end ()

template<class T >
void insertCollection (const T &objs)
 Inserts a set of objects into the list. More...

void insert (const CRenderizable::Ptr &newObject)
 Insert a new object to the list. More...

template<class T_it >
void insert (const T_it &begin, const T_it &end)
 Inserts a set of objects, bounded by iterators, into the list. More...

void render () const override
 Render child objects. More...

void clear ()
 Clear the list of objects in the scene, deleting objects' memory. More...

size_t size ()
 Returns number of objects. More...

bool empty () const
 Returns true if there are no objects. More...

void initializeAllTextures ()
 Initializes all textures in the scene (See opengl::CTexturedPlane::loadTextureInOpenGL) More...

CRenderizable::Ptr getByName (const std::string &str)
 Returns the first object with a given name, or a nullptr pointer if not found. More...

template<typename T >
T::Ptr getByClass (const size_t &ith=0) const
 Returns the i'th object of a given class (or of a descendant class), or nullptr (an empty smart pointer) if not found. More...

void removeObject (const CRenderizable::Ptr &obj)
 Removes the given object from the scene (it also deletes the object to free its memory). More...

void dumpListOfObjects (std::vector< std::string > &lst)
 Retrieves a list of all objects in text form. More...

virtual bool traceRay (const mrpt::poses::CPose3D &o, double &dist) const override
 Simulation of ray-trace, given a pose. More...

virtual CRenderizablesetColor_u8 (const mrpt::img::TColor &c) override

virtual CRenderizablesetColorR_u8 (const uint8_t r) override
 Color components in the range [0,255]. More...

virtual CRenderizablesetColorG_u8 (const uint8_t g) override
 Color components in the range [0,255]. More...

virtual CRenderizablesetColorB_u8 (const uint8_t b) override
 Color components in the range [0,255]. More...

virtual CRenderizablesetColorA_u8 (const uint8_t a) override
 Color components in the range [0,255]. More...

bool contains (const CRenderizable::Ptr &obj) const

virtual void getBoundingBox (mrpt::math::TPoint3D &bb_min, mrpt::math::TPoint3D &bb_max) const override
 Evaluates the bounding box of this object (including possible children) in the coordinate frame of the object parent. More...

 CSetOfObjects ()
 Default constructor. More...

virtual ~CSetOfObjects ()
 Private, virtual destructor: only can be deleted from smart pointers. More...

virtual mxArraywriteToMatlab () const
 Introduces a pure virtual method responsible for writing to a mxArray Matlab object, typically a MATLAB struct whose contents are documented in each derived class. More...

Changes the appearance of the object to render
void setName (const std::string &n)
 Changes the name of the object. More...

const std::stringgetName () const
 Returns the name of the object. More...

bool isVisible () const
 Is the object visible? More...

void setVisibility (bool visible=true)
 Set object visibility (default=true) More...

void enableShowName (bool showName=true)
 Enables or disables showing the name of the object as a label when rendering. More...

bool isShowNameEnabled () const

CRenderizablesetPose (const mrpt::poses::CPose3D &o)
 Set the 3D pose from a mrpt::poses::CPose3D object (return a ref to this) More...

CRenderizablesetPose (const mrpt::poses::CPose2D &o)
 Set the 3D pose from a mrpt::poses::CPose3D object (return a ref to this) More...

CRenderizablesetPose (const mrpt::math::TPose3D &o)
 Set the 3D pose from a mrpt::math::TPose3D object (return a ref to this) More...

CRenderizablesetPose (const mrpt::math::TPose2D &o)
 Set the 3D pose from a mrpt::math::TPose3D object (return a ref to this) More...

CRenderizablesetPose (const mrpt::poses::CPoint3D &o)
 Set the 3D pose from a mrpt::poses::CPose3D object (return a ref to this) More...

CRenderizablesetPose (const mrpt::poses::CPoint2D &o)
 Set the 3D pose from a mrpt::poses::CPose3D object (return a ref to this) More...

mrpt::math::TPose3D getPose () const
 Returns the 3D pose of the object as TPose3D. More...

const mrpt::poses::CPose3DgetPoseRef () const
 Returns a const ref to the 3D pose of the object as mrpt::poses::CPose3D (which explicitly contains the 3x3 rotation matrix) More...

CRenderizablesetLocation (double x, double y, double z)
 Changes the location of the object, keeping untouched the orientation. More...

CRenderizablesetLocation (const mrpt::math::TPoint3D &p)
 Changes the location of the object, keeping untouched the orientation. More...

double getPoseX () const
 Translation relative to parent coordinate origin. More...

double getPoseY () const
 Translation relative to parent coordinate origin. More...

double getPoseZ () const
 Translation relative to parent coordinate origin. More...

double getPoseYaw () const
 Rotation relative to parent coordinate origin, in DEGREES. More...

double getPosePitch () const
 Rotation relative to parent coordinate origin, in DEGREES. More...

double getPoseRoll () const
 Rotation relative to parent coordinate origin, in DEGREES. More...

double getPoseYawRad () const
 Rotation relative to parent coordinate origin, in radians. More...

double getPosePitchRad () const
 Rotation relative to parent coordinate origin, in radians. More...

double getPoseRollRad () const
 Rotation relative to parent coordinate origin, in radians. More...

double getColorR () const
 Color components in the range [0,1]. More...

double getColorG () const
 Color components in the range [0,1]. More...

double getColorB () const
 Color components in the range [0,1]. More...

double getColorA () const
 Color components in the range [0,1]. More...

uint8_t getColorR_u8 () const
 Color components in the range [0,255]. More...

uint8_t getColorG_u8 () const
 Color components in the range [0,255]. More...

uint8_t getColorB_u8 () const
 Color components in the range [0,255]. More...

uint8_t getColorA_u8 () const
 Color components in the range [0,255]. More...

CRenderizablesetColorR (const double r)
 Color components in the range [0,1]. More...

CRenderizablesetColorG (const double g)
 Color components in the range [0,1]. More...

CRenderizablesetColorB (const double b)
 Color components in the range [0,1]. More...

CRenderizablesetColorA (const double a)
 Color components in the range [0,1]. More...

CRenderizablesetScale (float s)
 Scale to apply to the object, in all three axes (default=1) More...

CRenderizablesetScale (float sx, float sy, float sz)
 Scale to apply to the object in each axis (default=1) More...

float getScaleX () const
 Get the current scaling factor in one axis. More...

float getScaleY () const
 Get the current scaling factor in one axis. More...

float getScaleZ () const
 Get the current scaling factor in one axis. More...

mrpt::img::TColorf getColor () const
 Returns the object color property as a TColorf. More...

CRenderizablesetColor (const mrpt::img::TColorf &c)
 Changes the default object color. More...

CRenderizablesetColor (double R, double G, double B, double A=1)
 Set the color components of this object (R,G,B,Alpha, in the range 0-1) More...

const mrpt::img::TColorgetColor_u8 () const
 Returns the object color property as a TColor. More...

CRenderizablesetColor_u8 (uint8_t R, uint8_t G, uint8_t B, uint8_t A=255)
 Set the color components of this object (R,G,B,Alpha, in the range 0-255) More...

RTTI classes and functions for polymorphic hierarchies
mrpt::rtti::CObject::Ptr duplicateGetSmartPtr () const
 Returns a copy of the object, indepently of its class, as a smart pointer (the newly created object will exist as long as any copy of this smart pointer). More...


Static Public Member Functions

static voidoperator new (size_t size, void *ptr)

static void renderTextBitmap (const char *str, void *fontStyle)
 This method is safe for calling from within ::render() methods. More...

static void renderTextBitmap (int screen_x, int screen_y, const std::string &str, float color_r=1, float color_g=1, float color_b=1, mrpt::opengl::TOpenGLFont font=mrpt::opengl::MRPT_GLUT_BITMAP_TIMES_ROMAN_24)
 Render a text message in the current rendering context, creating a glViewport in the way (do not call within ::render() methods) More...

static int textBitmapWidth (const std::string &str, mrpt::opengl::TOpenGLFont font=mrpt::opengl::MRPT_GLUT_BITMAP_TIMES_ROMAN_24)
 Return the exact width in pixels for a given string, as will be rendered by renderTextBitmap(). More...

pose_pdf -> 3d objects auxiliary templates
static CSetOfObjects::Ptr posePDF2opengl (const mrpt::poses::CPosePDF &o)
 Returns a representation of a the PDF - this is just an auxiliary function, it's more natural to call mrpt::poses::CPosePDF::getAs3DObject. More...

static CSetOfObjects::Ptr posePDF2opengl (const mrpt::poses::CPointPDF &o)
 Returns a representation of a the PDF - this is just an auxiliary function, it's more natural to call mrpt::poses::CPointPDF::getAs3DObject. More...

static CSetOfObjects::Ptr posePDF2opengl (const mrpt::poses::CPose3DPDF &o)
 Returns a representation of a the PDF - this is just an auxiliary function, it's more natural to call mrpt::poses::CPose3DPDF::getAs3DObject. More...

static CSetOfObjects::Ptr posePDF2opengl (const mrpt::poses::CPose3DQuatPDF &o)
 Returns a representation of a the PDF - this is just an auxiliary function, it's more natural to call mrpt::poses::CPose3DQuatPDF::getAs3DObject. More...


Protected Member Functions

void writeToStreamRender (mrpt::serialization::CArchive &out) const

void readFromStreamRender (mrpt::serialization::CArchive &in)

CSerializable virtual methods
uint8_t serializeGetVersion () const override
 Must return the current versioning number of the object. More...

void serializeTo (mrpt::serialization::CArchive &out) const override
 Pure virtual method for writing (serializing) to an abstract archive. More...

void serializeFrom (mrpt::serialization::CArchive &in, uint8_t serial_version) override
 Pure virtual method for reading (deserializing) from an abstract archive. More...


Static Protected Member Functions

static void checkOpenGLError ()
 Checks glGetError and throws an exception if an error situation is found. More...

static unsigned int getNewTextureNumber ()
 Returns the lowest next free texture name (avoid using OpenGL's own function since we may call them from different threads and seem it's not cool). More...

static void releaseTextureName (unsigned int i)


Protected Attributes

CListOpenGLObjects m_objects
 The list of child objects. More...

std::string m_name

bool m_show_name

mrpt::img::TColor m_color
 Color components in the range [0,255]. More...

mrpt::poses::CPose3D m_pose
 6D pose wrt the parent coordinate reference. More...

float m_scale_x
 Scale components to apply to the object (default=1) More...

float m_scale_y

float m_scale_z

bool m_visible
 Is the object visible? (default=true) More...


RTTI stuff

using Ptr = std::shared_ptr< CSetOfObjects >

using ConstPtr = std::shared_ptr< const CSetOfObjects >

using UniquePtr = std::unique_ptr< CSetOfObjects >

using ConstUniquePtr = std::unique_ptr< const CSetOfObjects >

static mrpt::rtti::CLASSINIT _init_CSetOfObjects

static const mrpt::rtti::TRuntimeClassId runtimeClassId

static constexpr const char * className = "CSetOfObjects"

static const mrpt::rtti::TRuntimeClassId_GetBaseClass ()

static constexpr auto getClassName ()

static const mrpt::rtti::TRuntimeClassIdGetRuntimeClassIdStatic ()

static mrpt::rtti::CObjectCreateObject ()

template<typename... Args>
static Ptr Create (Args &&... args)

template<typename... Args>
static UniquePtr CreateUnique (Args &&... args)

virtual const mrpt::rtti::TRuntimeClassIdGetRuntimeClass () const override
 Returns information about the class of an object in runtime. More...

virtual mrpt::rtti::CObjectclone () const override
 Returns a deep copy (clone) of the object, indepently of its class. More...


Member Typedef Documentation

◆ const_iterator

using mrpt::opengl::CSetOfObjects::const_iterator = CListOpenGLObjects::const_iterator

Definition at line 40 of file CSetOfObjects.h.

◆ ConstPtr

Definition at line 30 of file CSetOfObjects.h.

◆ ConstUniquePtr

Definition at line 30 of file CSetOfObjects.h.

◆ iterator

using mrpt::opengl::CSetOfObjects::iterator = CListOpenGLObjects::iterator

Definition at line 41 of file CSetOfObjects.h.

◆ Ptr

A type for the associated smart pointer

Definition at line 30 of file CSetOfObjects.h.

◆ UniquePtr

Definition at line 30 of file CSetOfObjects.h.

Constructor & Destructor Documentation

◆ CSetOfObjects()

CSetOfObjects::CSetOfObjects ( )

Default constructor.

Definition at line 105 of file CSetOfObjects.cpp.

◆ ~CSetOfObjects()

CSetOfObjects::~CSetOfObjects ( )
virtual

Private, virtual destructor: only can be deleted from smart pointers.

Definition at line 106 of file CSetOfObjects.cpp.

References mrpt::containers::clear().

Member Function Documentation

◆ _GetBaseClass()

static const mrpt::rtti::TRuntimeClassId* mrpt::opengl::CSetOfObjects::_GetBaseClass ( )
staticprotected

◆ begin() [1/2]

const_iterator mrpt::opengl::CSetOfObjects::begin ( ) const
inline

Definition at line 43 of file CSetOfObjects.h.

References m_objects.

Referenced by insert().

◆ begin() [2/2]

iterator mrpt::opengl::CSetOfObjects::begin ( )
inline

Definition at line 45 of file CSetOfObjects.h.

References m_objects.

◆ checkOpenGLError()

void CRenderizable::checkOpenGLError ( )
staticprotectedinherited

◆ clear()

void CSetOfObjects::clear ( )

Clear the list of objects in the scene, deleting objects' memory.

Definition at line 35 of file CSetOfObjects.cpp.

Referenced by mrpt::opengl::COctreePointRenderer< CPointCloudColoured >::octree_get_graphics_boundingboxes().

◆ clone()

virtual mrpt::rtti::CObject* mrpt::opengl::CSetOfObjects::clone ( ) const
overridevirtual

Returns a deep copy (clone) of the object, indepently of its class.

Implements mrpt::rtti::CObject.

◆ contains()

bool CSetOfObjects::contains ( const CRenderizable::Ptr obj) const

Definition at line 202 of file CSetOfObjects.cpp.

References mrpt::containers::find().

◆ Create()

template<typename... Args>
static Ptr mrpt::opengl::CSetOfObjects::Create ( Args &&...  args)
inlinestatic

Definition at line 30 of file CSetOfObjects.h.

Referenced by mrpt::opengl::graph_tools::graph_visualize().

◆ CreateObject()

static mrpt::rtti::CObject* mrpt::opengl::CSetOfObjects::CreateObject ( )
static

◆ CreateUnique()

template<typename... Args>
static UniquePtr mrpt::opengl::CSetOfObjects::CreateUnique ( Args &&...  args)
inlinestatic

Definition at line 30 of file CSetOfObjects.h.

◆ dumpListOfObjects()

void CSetOfObjects::dumpListOfObjects ( std::vector< std::string > &  lst)

Retrieves a list of all objects in text form.

Definition at line 118 of file CSetOfObjects.cpp.

References CLASS_ID_NAMESPACE, and dumpListOfObjects().

Referenced by dumpListOfObjects().

◆ duplicateGetSmartPtr()

mrpt::rtti::CObject::Ptr CObject::duplicateGetSmartPtr ( ) const
inlineinherited

Returns a copy of the object, indepently of its class, as a smart pointer (the newly created object will exist as long as any copy of this smart pointer).

Definition at line 169 of file CObject.h.

References mrpt::rtti::CObject::clone().

Referenced by mrpt::obs::CRawlog::addActions(), and mrpt::obs::CRawlog::addObservations().

◆ empty()

bool mrpt::opengl::CSetOfObjects::empty ( ) const
inline

Returns true if there are no objects.

Definition at line 77 of file CSetOfObjects.h.

References m_objects.

◆ enableShowName()

void mrpt::opengl::CRenderizable::enableShowName ( bool  showName = true)
inlineinherited

Enables or disables showing the name of the object as a label when rendering.

Definition at line 85 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::m_show_name.

◆ end() [1/2]

const_iterator mrpt::opengl::CSetOfObjects::end ( ) const
inline

Definition at line 44 of file CSetOfObjects.h.

References m_objects.

Referenced by insert().

◆ end() [2/2]

iterator mrpt::opengl::CSetOfObjects::end ( )
inline

Definition at line 46 of file CSetOfObjects.h.

References m_objects.

◆ getBoundingBox()

void CSetOfObjects::getBoundingBox ( mrpt::math::TPoint3D bb_min,
mrpt::math::TPoint3D bb_max
) const
overridevirtual

Evaluates the bounding box of this object (including possible children) in the coordinate frame of the object parent.

Implements mrpt::opengl::CRenderizable.

Definition at line 263 of file CSetOfObjects.cpp.

References mrpt::keep_max(), mrpt::keep_min(), mrpt::math::TPoint3D::x, mrpt::math::TPoint3D::y, and mrpt::math::TPoint3D::z.

◆ getByClass()

template<typename T >
T::Ptr mrpt::opengl::CSetOfObjects::getByClass ( const size_t &  ith = 0) const

Returns the i'th object of a given class (or of a descendant class), or nullptr (an empty smart pointer) if not found.

Example:

CSphere::Ptr obs = myscene.getByClass<CSphere>();

By default (ith=0), the first observation is returned.

Definition at line 184 of file CSetOfObjects.h.

References CLASS_ID_NAMESPACE, m_objects, MRPT_END, and MRPT_START.

◆ getByName()

CRenderizable::Ptr CSetOfObjects::getByName ( const std::string str)

Returns the first object with a given name, or a nullptr pointer if not found.

Definition at line 242 of file CSetOfObjects.cpp.

References CLASS_ID_NAMESPACE.

Referenced by mrpt::opengl::COpenGLViewport::getByName().

◆ getClassName()

static constexpr auto mrpt::opengl::CSetOfObjects::getClassName ( )
inlinestatic

Definition at line 30 of file CSetOfObjects.h.

◆ getColor()

mrpt::img::TColorf mrpt::opengl::CRenderizable::getColor ( ) const
inlineinherited

Returns the object color property as a TColorf.

Definition at line 234 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::m_color.

Referenced by mrpt::maps::COctoMap::getAsOctoMapVoxels(), and mrpt::maps::CColouredOctoMap::getAsOctoMapVoxels().

◆ getColor_u8()

const mrpt::img::TColor& mrpt::opengl::CRenderizable::getColor_u8 ( ) const
inlineinherited

Returns the object color property as a TColor.

Definition at line 254 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::m_color.

◆ getColorA()

double mrpt::opengl::CRenderizable::getColorA ( ) const
inlineinherited

Color components in the range [0,1].

Definition at line 157 of file CRenderizable.h.

References mrpt::img::TColor::A, and mrpt::opengl::CRenderizable::m_color.

Referenced by mrpt::opengl::gl_utils::renderSetOfObjects().

◆ getColorA_u8()

uint8_t mrpt::opengl::CRenderizable::getColorA_u8 ( ) const
inlineinherited

Color components in the range [0,255].

Definition at line 165 of file CRenderizable.h.

References mrpt::img::TColor::A, and mrpt::opengl::CRenderizable::m_color.

◆ getColorB()

double mrpt::opengl::CRenderizable::getColorB ( ) const
inlineinherited

Color components in the range [0,1].

Definition at line 155 of file CRenderizable.h.

References mrpt::img::TColor::B, and mrpt::opengl::CRenderizable::m_color.

Referenced by mrpt::opengl::gl_utils::renderSetOfObjects().

◆ getColorB_u8()

uint8_t mrpt::opengl::CRenderizable::getColorB_u8 ( ) const
inlineinherited

Color components in the range [0,255].

Definition at line 163 of file CRenderizable.h.

References mrpt::img::TColor::B, and mrpt::opengl::CRenderizable::m_color.

◆ getColorG()

double mrpt::opengl::CRenderizable::getColorG ( ) const
inlineinherited

Color components in the range [0,1].

Definition at line 153 of file CRenderizable.h.

References mrpt::img::TColor::G, and mrpt::opengl::CRenderizable::m_color.

Referenced by mrpt::opengl::gl_utils::renderSetOfObjects().

◆ getColorG_u8()

uint8_t mrpt::opengl::CRenderizable::getColorG_u8 ( ) const
inlineinherited

Color components in the range [0,255].

Definition at line 161 of file CRenderizable.h.

References mrpt::img::TColor::G, and mrpt::opengl::CRenderizable::m_color.

◆ getColorR()

double mrpt::opengl::CRenderizable::getColorR ( ) const
inlineinherited

Color components in the range [0,1].

Definition at line 151 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::m_color, and mrpt::img::TColor::R.

Referenced by mrpt::opengl::gl_utils::renderSetOfObjects().

◆ getColorR_u8()

uint8_t mrpt::opengl::CRenderizable::getColorR_u8 ( ) const
inlineinherited

Color components in the range [0,255].

Definition at line 159 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::m_color, and mrpt::img::TColor::R.

◆ getName()

const std::string& mrpt::opengl::CRenderizable::getName ( ) const
inlineinherited

Returns the name of the object.

Definition at line 70 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::m_name.

Referenced by mrpt::opengl::gl_utils::renderSetOfObjects().

◆ getNewTextureNumber()

unsigned int CRenderizable::getNewTextureNumber ( )
staticprotectedinherited

Returns the lowest next free texture name (avoid using OpenGL's own function since we may call them from different threads and seem it's not cool).

Returns the lowest, free texture name.

Definition at line 71 of file CRenderizable.cpp.

References TOpenGLNameBooker::instance(), MAX_GL_TEXTURE_IDS, MAX_GL_TEXTURE_IDS_MASK, MRPT_END, MRPT_START, and THROW_EXCEPTION_FMT.

◆ getPose()

mrpt::math::TPose3D CRenderizable::getPose ( ) const
inherited

Returns the 3D pose of the object as TPose3D.

Definition at line 343 of file CRenderizable.cpp.

References mrpt::poses::CPose3D::asTPose(), and mrpt::opengl::CRenderizable::m_pose.

◆ getPosePitch()

double mrpt::opengl::CRenderizable::getPosePitch ( ) const
inlineinherited

Rotation relative to parent coordinate origin, in DEGREES.

Definition at line 141 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::m_pose, mrpt::poses::CPose3D::pitch(), and mrpt::RAD2DEG().

◆ getPosePitchRad()

double mrpt::opengl::CRenderizable::getPosePitchRad ( ) const
inlineinherited

Rotation relative to parent coordinate origin, in radians.

Definition at line 147 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::m_pose, and mrpt::poses::CPose3D::pitch().

◆ getPoseRef()

const mrpt::poses::CPose3D& mrpt::opengl::CRenderizable::getPoseRef ( ) const
inlineinherited

Returns a const ref to the 3D pose of the object as mrpt::poses::CPose3D (which explicitly contains the 3x3 rotation matrix)

Definition at line 111 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::m_pose.

Referenced by mrpt::opengl::gl_utils::renderSetOfObjects().

◆ getPoseRoll()

double mrpt::opengl::CRenderizable::getPoseRoll ( ) const
inlineinherited

Rotation relative to parent coordinate origin, in DEGREES.

Definition at line 143 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::m_pose, mrpt::RAD2DEG(), and mrpt::poses::CPose3D::roll().

◆ getPoseRollRad()

double mrpt::opengl::CRenderizable::getPoseRollRad ( ) const
inlineinherited

Rotation relative to parent coordinate origin, in radians.

Definition at line 149 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::m_pose, and mrpt::poses::CPose3D::roll().

◆ getPoseX()

double mrpt::opengl::CRenderizable::getPoseX ( ) const
inlineinherited

Translation relative to parent coordinate origin.

Definition at line 133 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::m_pose, and mrpt::poses::CPoseOrPoint< DERIVEDCLASS >::x().

◆ getPoseY()

double mrpt::opengl::CRenderizable::getPoseY ( ) const
inlineinherited

Translation relative to parent coordinate origin.

Definition at line 135 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::m_pose, and mrpt::poses::CPoseOrPoint< DERIVEDCLASS >::y().

◆ getPoseYaw()

double mrpt::opengl::CRenderizable::getPoseYaw ( ) const
inlineinherited

Rotation relative to parent coordinate origin, in DEGREES.

Definition at line 139 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::m_pose, mrpt::RAD2DEG(), and mrpt::poses::CPose3D::yaw().

◆ getPoseYawRad()

double mrpt::opengl::CRenderizable::getPoseYawRad ( ) const
inlineinherited

Rotation relative to parent coordinate origin, in radians.

Definition at line 145 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::m_pose, and mrpt::poses::CPose3D::yaw().

◆ getPoseZ()

double mrpt::opengl::CRenderizable::getPoseZ ( ) const
inlineinherited

Translation relative to parent coordinate origin.

Definition at line 137 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::m_pose.

◆ GetRuntimeClass()

virtual const mrpt::rtti::TRuntimeClassId* mrpt::opengl::CSetOfObjects::GetRuntimeClass ( ) const
overridevirtual

Returns information about the class of an object in runtime.

Reimplemented from mrpt::opengl::CRenderizable.

◆ GetRuntimeClassIdStatic()

static const mrpt::rtti::TRuntimeClassId& mrpt::opengl::CSetOfObjects::GetRuntimeClassIdStatic ( )
static

◆ getScaleX()

float mrpt::opengl::CRenderizable::getScaleX ( ) const
inlineinherited

Get the current scaling factor in one axis.

Definition at line 228 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::m_scale_x.

Referenced by mrpt::opengl::gl_utils::renderSetOfObjects().

◆ getScaleY()

float mrpt::opengl::CRenderizable::getScaleY ( ) const
inlineinherited

Get the current scaling factor in one axis.

Definition at line 230 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::m_scale_y.

Referenced by mrpt::opengl::gl_utils::renderSetOfObjects().

◆ getScaleZ()

float mrpt::opengl::CRenderizable::getScaleZ ( ) const
inlineinherited

Get the current scaling factor in one axis.

Definition at line 232 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::m_scale_z.

Referenced by mrpt::opengl::gl_utils::renderSetOfObjects().

◆ initializeAllTextures()

void CSetOfObjects::initializeAllTextures ( )

Initializes all textures in the scene (See opengl::CTexturedPlane::loadTextureInOpenGL)

Definition at line 91 of file CSetOfObjects.cpp.

References IS_CLASS, and IS_DERIVED.

Referenced by mrpt::opengl::COpenGLViewport::initializeAllTextures().

◆ insert() [1/2]

void CSetOfObjects::insert ( const CRenderizable::Ptr newObject)

Insert a new object to the list.

Definition at line 107 of file CSetOfObjects.cpp.

References ASSERTMSG_.

Referenced by insert(), insertCollection(), and mrpt::opengl::COctreePointRenderer< CPointCloudColoured >::octree_get_graphics_boundingboxes().

◆ insert() [2/2]

template<class T_it >
void mrpt::opengl::CSetOfObjects::insert ( const T_it &  begin,
const T_it &  end
)
inline

Inserts a set of objects, bounded by iterators, into the list.

Definition at line 61 of file CSetOfObjects.h.

References begin(), end(), and insert().

◆ insertCollection()

template<class T >
void mrpt::opengl::CSetOfObjects::insertCollection ( const T &  objs)
inline

Inserts a set of objects into the list.

Definition at line 50 of file CSetOfObjects.h.

References insert().

◆ isShowNameEnabled()

bool mrpt::opengl::CRenderizable::isShowNameEnabled ( ) const
inlineinherited

◆ isVisible()

bool mrpt::opengl::CRenderizable::isVisible ( ) const
inlineinherited

Is the object visible?

See also
setVisibility

Definition at line 71 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::m_visible.

Referenced by mrpt::opengl::gl_utils::renderSetOfObjects().

◆ operator delete() [1/3]

void mrpt::opengl::CSetOfObjects::operator delete ( void ptr,
const std::nothrow_t &
)
inlinenoexcept

Definition at line 30 of file CSetOfObjects.h.

◆ operator delete() [2/3]

void mrpt::opengl::CSetOfObjects::operator delete ( void ptr)
inlinenoexcept

Definition at line 30 of file CSetOfObjects.h.

◆ operator delete() [3/3]

void mrpt::opengl::CSetOfObjects::operator delete ( void memory,
void ptr
)
inlinenoexcept

Definition at line 30 of file CSetOfObjects.h.

◆ operator delete[]()

void mrpt::opengl::CSetOfObjects::operator delete[] ( void ptr)
inlinenoexcept

Definition at line 30 of file CSetOfObjects.h.

◆ operator new() [1/3]

void* mrpt::opengl::CSetOfObjects::operator new ( size_t  size)
inline

Definition at line 30 of file CSetOfObjects.h.

◆ operator new() [2/3]

static void* mrpt::opengl::CSetOfObjects::operator new ( size_t  size,
void ptr
)
inlinestatic

Definition at line 30 of file CSetOfObjects.h.

◆ operator new() [3/3]

void* mrpt::opengl::CSetOfObjects::operator new ( size_t  size,
const std::nothrow_t &
)
inlinenoexcept

Definition at line 30 of file CSetOfObjects.h.

◆ operator new[]()

void* mrpt::opengl::CSetOfObjects::operator new[] ( size_t  size)
inline

Definition at line 30 of file CSetOfObjects.h.

◆ posePDF2opengl() [1/4]

CSetOfObjects::Ptr CSetOfObjects::posePDF2opengl ( const mrpt::poses::CPosePDF o)
static

Returns a representation of a the PDF - this is just an auxiliary function, it's more natural to call mrpt::poses::CPosePDF::getAs3DObject.

Definition at line 43 of file pose_pdfs.cpp.

References mrpt::math::cov(), IS_CLASS, mrpt::math::mean(), POSE_COLOR, POSE_POINT_SIZE, POSE_TAIL_LENGTH, and POSE_TAIL_WIDTH.

Referenced by mrpt::opengl::posePDF2opengl().

◆ posePDF2opengl() [2/4]

CSetOfObjects::Ptr CSetOfObjects::posePDF2opengl ( const mrpt::poses::CPointPDF o)
static

Returns a representation of a the PDF - this is just an auxiliary function, it's more natural to call mrpt::poses::CPointPDF::getAs3DObject.

Definition at line 137 of file pose_pdfs.cpp.

References IS_CLASS, and POINT_COLOR.

◆ posePDF2opengl() [3/4]

CSetOfObjects::Ptr CSetOfObjects::posePDF2opengl ( const mrpt::poses::CPose3DPDF o)
static

Returns a representation of a the PDF - this is just an auxiliary function, it's more natural to call mrpt::poses::CPose3DPDF::getAs3DObject.

Definition at line 198 of file pose_pdfs.cpp.

References mrpt::opengl::stock_objects::CornerXYZ(), mrpt::opengl::stock_objects::CornerXYZSimple(), IS_CLASS, POSE_AXIS_SCALE, and POSE_COLOR.

◆ posePDF2opengl() [4/4]

CSetOfObjects::Ptr CSetOfObjects::posePDF2opengl ( const mrpt::poses::CPose3DQuatPDF o)
static

Returns a representation of a the PDF - this is just an auxiliary function, it's more natural to call mrpt::poses::CPose3DQuatPDF::getAs3DObject.

Definition at line 272 of file pose_pdfs.cpp.

References mrpt::opengl::stock_objects::CornerXYZ(), IS_CLASS, POSE_AXIS_SCALE, and POSE_COLOR.

◆ readFromStreamRender()

void CRenderizable::readFromStreamRender ( mrpt::serialization::CArchive in)
protectedinherited

◆ releaseTextureName()

void CRenderizable::releaseTextureName ( unsigned int  i)
staticprotectedinherited

◆ removeObject()

void CSetOfObjects::removeObject ( const CRenderizable::Ptr obj)

Removes the given object from the scene (it also deletes the object to free its memory).

Definition at line 145 of file CSetOfObjects.cpp.

References CLASS_ID_NAMESPACE.

◆ render()

void CSetOfObjects::render ( ) const
overridevirtual

Render child objects.

Implements mrpt::opengl::CRenderizable.

Definition at line 44 of file CSetOfObjects.cpp.

References mrpt::opengl::gl_utils::renderSetOfObjects().

◆ renderTextBitmap() [1/2]

void CRenderizable::renderTextBitmap ( const char *  str,
void fontStyle
)
staticinherited

This method is safe for calling from within ::render() methods.

See also
renderTextBitmap, mrpt::opengl::gl_utils
renderTextBitmap

Definition at line 367 of file CRenderizable.cpp.

References mrpt::opengl::gl_utils::renderTextBitmap().

◆ renderTextBitmap() [2/2]

void CRenderizable::renderTextBitmap ( int  screen_x,
int  screen_y,
const std::string str,
float  color_r = 1,
float  color_g = 1,
float  color_b = 1,
mrpt::opengl::TOpenGLFont  font = mrpt::opengl::MRPT_GLUT_BITMAP_TIMES_ROMAN_24
)
staticinherited

Render a text message in the current rendering context, creating a glViewport in the way (do not call within ::render() methods)

  • Coordinates (x,y) are 2D pixels, starting at bottom-left of the viewport. Negative numbers will wrap to the opposite side of the viewport (e.g. x=-10 means 10px fromt the right).
  • The text color is defined by (color_r,color_g,color_b), each float numbers in the range [0,1].
    See also
    renderTextBitmap, textBitmapWidth, mrpt::opengl::gl_utils

Definition at line 318 of file gl_utils.cpp.

References aux_mrptfont2glutfont(), GL_DEPTH_TEST, GL_MODELVIEW, GL_PROJECTION, GL_TRANSFORM_BIT, GL_VIEWPORT, GL_VIEWPORT_BIT, glColor3f(), glDisable(), glEnable(), glGetIntegerv(), glLoadIdentity(), glMatrixMode(), glPopAttrib(), glPopMatrix(), glPushAttrib(), glPushMatrix(), glRasterPos3f(), glViewport(), and MRPT_UNUSED_PARAM.

◆ serializeFrom()

void CSetOfObjects::serializeFrom ( mrpt::serialization::CArchive in,
uint8_t  serial_version
)
overrideprotectedvirtual

Pure virtual method for reading (deserializing) from an abstract archive.

Users don't call this method directly. Instead, use stream >> object;.

Parameters
inThe input binary stream where the object data must read from.
versionThe version of the object stored in the stream: use this version number in your code to know how to read the incoming data.
Exceptions
std::exceptionOn any I/O error

Implements mrpt::serialization::CSerializable.

Definition at line 65 of file CSetOfObjects.cpp.

References mrpt::containers::clear(), and MRPT_THROW_UNKNOWN_SERIALIZATION_VERSION.

◆ serializeGetVersion()

uint8_t CSetOfObjects::serializeGetVersion ( ) const
overrideprotectedvirtual

Must return the current versioning number of the object.

Start in zero for new classes, and increments each time there is a change in the stored format.

Implements mrpt::serialization::CSerializable.

Definition at line 50 of file CSetOfObjects.cpp.

◆ serializeTo()

void CSetOfObjects::serializeTo ( mrpt::serialization::CArchive out) const
overrideprotectedvirtual

Pure virtual method for writing (serializing) to an abstract archive.

Users don't call this method directly. Instead, use stream << object;.

Exceptions
std::exceptionOn any I/O error

Implements mrpt::serialization::CSerializable.

Definition at line 51 of file CSetOfObjects.cpp.

References mrpt::serialization::CArchive::WriteAs().

◆ setColor() [1/2]

CRenderizable& mrpt::opengl::CRenderizable::setColor ( const mrpt::img::TColorf c)
inlineinherited

Changes the default object color.

Returns
a ref to this

Definition at line 239 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::setColor_u8().

Referenced by mrpt::hwdrivers::CSkeletonTracker::processPreview().

◆ setColor() [2/2]

CRenderizable& mrpt::opengl::CRenderizable::setColor ( double  R,
double  G,
double  B,
double  A = 1
)
inlineinherited

Set the color components of this object (R,G,B,Alpha, in the range 0-1)

Returns
a ref to this

Definition at line 248 of file CRenderizable.h.

References G, R, and mrpt::opengl::CRenderizable::setColor_u8().

◆ setColor_u8() [1/2]

CRenderizable & CSetOfObjects::setColor_u8 ( const mrpt::img::TColor c)
overridevirtual

Reimplemented from mrpt::opengl::CRenderizable.

Definition at line 192 of file CSetOfObjects.cpp.

◆ setColor_u8() [2/2]

CRenderizable& mrpt::opengl::CRenderizable::setColor_u8 ( uint8_t  R,
uint8_t  G,
uint8_t  B,
uint8_t  A = 255
)
inlineinherited

Set the color components of this object (R,G,B,Alpha, in the range 0-255)

Returns
a ref to this

Definition at line 260 of file CRenderizable.h.

References G, R, and mrpt::opengl::CRenderizable::setColor_u8().

◆ setColorA()

CRenderizable& mrpt::opengl::CRenderizable::setColorA ( const double  a)
inlineinherited

Color components in the range [0,1].

Returns
a ref to this

Definition at line 182 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::setColorA_u8().

◆ setColorA_u8()

CRenderizable & CSetOfObjects::setColorA_u8 ( const uint8_t  a)
overridevirtual

Color components in the range [0,255].

Returns
a ref to this

Reimplemented from mrpt::opengl::CRenderizable.

Definition at line 231 of file CSetOfObjects.cpp.

References mrpt::opengl::CRenderizable::setColorA_u8().

◆ setColorB()

CRenderizable& mrpt::opengl::CRenderizable::setColorB ( const double  b)
inlineinherited

Color components in the range [0,1].

Returns
a ref to this

Definition at line 177 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::setColorB_u8().

◆ setColorB_u8()

CRenderizable & CSetOfObjects::setColorB_u8 ( const uint8_t  b)
overridevirtual

Color components in the range [0,255].

Returns
a ref to this

Reimplemented from mrpt::opengl::CRenderizable.

Definition at line 223 of file CSetOfObjects.cpp.

References mrpt::opengl::CRenderizable::setColorB_u8().

◆ setColorG()

CRenderizable& mrpt::opengl::CRenderizable::setColorG ( const double  g)
inlineinherited

Color components in the range [0,1].

Returns
a ref to this

Definition at line 172 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::setColorG_u8().

◆ setColorG_u8()

CRenderizable & CSetOfObjects::setColorG_u8 ( const uint8_t  g)
overridevirtual

Color components in the range [0,255].

Returns
a ref to this

Reimplemented from mrpt::opengl::CRenderizable.

Definition at line 215 of file CSetOfObjects.cpp.

References mrpt::opengl::CRenderizable::setColorG_u8().

◆ setColorR()

CRenderizable& mrpt::opengl::CRenderizable::setColorR ( const double  r)
inlineinherited

Color components in the range [0,1].

Returns
a ref to this

Definition at line 167 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::setColorR_u8().

◆ setColorR_u8()

CRenderizable & CSetOfObjects::setColorR_u8 ( const uint8_t  r)
overridevirtual

Color components in the range [0,255].

Returns
a ref to this

Reimplemented from mrpt::opengl::CRenderizable.

Definition at line 207 of file CSetOfObjects.cpp.

References mrpt::opengl::CRenderizable::setColorR_u8().

◆ setLocation() [1/2]

CRenderizable& mrpt::opengl::CRenderizable::setLocation ( double  x,
double  y,
double  z
)
inlineinherited

Changes the location of the object, keeping untouched the orientation.

Returns
a ref to this

Definition at line 114 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::m_pose, mrpt::poses::CPoseOrPoint< DERIVEDCLASS >::x(), and mrpt::poses::CPoseOrPoint< DERIVEDCLASS >::y().

◆ setLocation() [2/2]

CRenderizable& mrpt::opengl::CRenderizable::setLocation ( const mrpt::math::TPoint3D p)
inlineinherited

Changes the location of the object, keeping untouched the orientation.

Returns
a ref to this

Definition at line 124 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::m_pose, mrpt::poses::CPoseOrPoint< DERIVEDCLASS >::x(), and mrpt::poses::CPoseOrPoint< DERIVEDCLASS >::y().

◆ setName()

void mrpt::opengl::CRenderizable::setName ( const std::string n)
inlineinherited

Changes the name of the object.

Definition at line 68 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::m_name.

◆ setPose() [1/6]

CRenderizable & CRenderizable::setPose ( const mrpt::poses::CPose3D o)
inherited

Set the 3D pose from a mrpt::poses::CPose3D object (return a ref to this)

Definition at line 309 of file CRenderizable.cpp.

References mrpt::opengl::CRenderizable::m_pose.

Referenced by mrpt::hwdrivers::CSkeletonTracker::processPreview().

◆ setPose() [2/6]

CRenderizable & CRenderizable::setPose ( const mrpt::poses::CPose2D o)
inherited

Set the 3D pose from a mrpt::poses::CPose3D object (return a ref to this)

Definition at line 314 of file CRenderizable.cpp.

References mrpt::opengl::CRenderizable::m_pose.

◆ setPose() [3/6]

CRenderizable & CRenderizable::setPose ( const mrpt::math::TPose3D o)
inherited

Set the 3D pose from a mrpt::math::TPose3D object (return a ref to this)

Definition at line 319 of file CRenderizable.cpp.

References mrpt::opengl::CRenderizable::m_pose.

◆ setPose() [4/6]

CRenderizable & CRenderizable::setPose ( const mrpt::math::TPose2D o)
inherited

Set the 3D pose from a mrpt::math::TPose3D object (return a ref to this)

Definition at line 324 of file CRenderizable.cpp.

References mrpt::opengl::CRenderizable::m_pose.

◆ setPose() [5/6]

CRenderizable & CRenderizable::setPose ( const mrpt::poses::CPoint3D o)
inherited

◆ setPose() [6/6]

CRenderizable & CRenderizable::setPose ( const mrpt::poses::CPoint2D o)
inherited

◆ setScale() [1/2]

CRenderizable& mrpt::opengl::CRenderizable::setScale ( float  s)
inlineinherited

Scale to apply to the object, in all three axes (default=1)

Returns
a ref to this

Definition at line 213 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::m_scale_x, mrpt::opengl::CRenderizable::m_scale_y, and mrpt::opengl::CRenderizable::m_scale_z.

Referenced by mrpt::opengl::CText3D::CText3D().

◆ setScale() [2/2]

CRenderizable& mrpt::opengl::CRenderizable::setScale ( float  sx,
float  sy,
float  sz
)
inlineinherited

Scale to apply to the object in each axis (default=1)

Returns
a ref to this

Definition at line 220 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::m_scale_x, mrpt::opengl::CRenderizable::m_scale_y, and mrpt::opengl::CRenderizable::m_scale_z.

◆ setVisibility()

void mrpt::opengl::CRenderizable::setVisibility ( bool  visible = true)
inlineinherited

Set object visibility (default=true)

See also
isVisible

Definition at line 76 of file CRenderizable.h.

References mrpt::opengl::CRenderizable::m_visible.

◆ size()

size_t mrpt::opengl::CSetOfObjects::size ( )
inline

Returns number of objects.

Definition at line 75 of file CSetOfObjects.h.

References m_objects.

◆ textBitmapWidth()

int CRenderizable::textBitmapWidth ( const std::string str,
mrpt::opengl::TOpenGLFont  font = mrpt::opengl::MRPT_GLUT_BITMAP_TIMES_ROMAN_24
)
staticinherited

Return the exact width in pixels for a given string, as will be rendered by renderTextBitmap().

See also
renderTextBitmap, mrpt::opengl::gl_utils
renderTextBitmap

Definition at line 376 of file CRenderizable.cpp.

References mrpt::opengl::gl_utils::textBitmapWidth().

◆ traceRay()

bool CSetOfObjects::traceRay ( const mrpt::poses::CPose3D o,
double &  dist
) const
overridevirtual

Simulation of ray-trace, given a pose.

Returns true if the ray effectively collisions with the object (returning the distance to the origin of the ray in "dist"), or false in other case. "dist" variable yields undefined behaviour when false is returned

Reimplemented from mrpt::opengl::CRenderizable.

Definition at line 160 of file CSetOfObjects.cpp.

◆ writeToMatlab()

virtual mxArray* mrpt::serialization::CSerializable::writeToMatlab ( ) const
inlinevirtualinherited

Introduces a pure virtual method responsible for writing to a mxArray Matlab object, typically a MATLAB struct whose contents are documented in each derived class.

Returns
A new mxArray (caller is responsible of memory freeing) or nullptr is class does not support conversion to MATLAB.

Definition at line 70 of file CSerializable.h.

◆ writeToStreamRender()

void CRenderizable::writeToStreamRender ( mrpt::serialization::CArchive out) const
protectedinherited

Member Data Documentation

◆ _init_CSetOfObjects

mrpt::rtti::CLASSINIT mrpt::opengl::CSetOfObjects::_init_CSetOfObjects
staticprotected

Definition at line 30 of file CSetOfObjects.h.

◆ className

constexpr const char* mrpt::opengl::CSetOfObjects::className = "CSetOfObjects"
static

Definition at line 30 of file CSetOfObjects.h.

◆ m_color

mrpt::img::TColor mrpt::opengl::CRenderizable::m_color
protectedinherited

◆ m_name

std::string mrpt::opengl::CRenderizable::m_name
protectedinherited

◆ m_objects

CListOpenGLObjects mrpt::opengl::CSetOfObjects::m_objects
protected

The list of child objects.

Objects are automatically deleted when calling "clear" or in the destructor.

Definition at line 37 of file CSetOfObjects.h.

Referenced by begin(), empty(), end(), getByClass(), and size().

◆ m_pose

mrpt::poses::CPose3D mrpt::opengl::CRenderizable::m_pose
protectedinherited

6D pose wrt the parent coordinate reference.

This class automatically holds the cached 3x3 rotation matrix for quick load into opengl stack.

Definition at line 57 of file CRenderizable.h.

Referenced by mrpt::opengl::CAssimpModel::getBoundingBox(), mrpt::opengl::CBox::getBoundingBox(), mrpt::opengl::CSimpleLine::getBoundingBox(), mrpt::opengl::CTexturedPlane::getBoundingBox(), mrpt::opengl::CGridPlaneXY::getBoundingBox(), mrpt::opengl::CText3D::getBoundingBox(), mrpt::opengl::CGridPlaneXZ::getBoundingBox(), mrpt::opengl::CFrustum::getBoundingBox(), mrpt::opengl::CPlanarLaserScan::getBoundingBox(), mrpt::opengl::CPolyhedron::getBoundingBox(), mrpt::opengl::CSetOfLines::getBoundingBox(), mrpt::opengl::CVectorField2D::getBoundingBox(), mrpt::opengl::CVectorField3D::getBoundingBox(), mrpt::opengl::CRenderizable::getPose(), mrpt::opengl::CRenderizable::getPosePitch(), mrpt::opengl::CRenderizable::getPosePitchRad(), mrpt::opengl::CRenderizable::getPoseRef(), mrpt::opengl::CRenderizable::getPoseRoll(), mrpt::opengl::CRenderizable::getPoseRollRad(), mrpt::opengl::CRenderizable::getPoseX(), mrpt::opengl::CRenderizable::getPoseY(), mrpt::opengl::CRenderizable::getPoseYaw(), mrpt::opengl::CRenderizable::getPoseYawRad(), mrpt::opengl::CRenderizable::getPoseZ(), mrpt::opengl::CPolyhedron::getSetOfPolygonsAbsolute(), mrpt::opengl::CRenderizable::readFromStreamRender(), mrpt::opengl::CGeneralizedEllipsoidTemplate< 3 >::render_dl(), mrpt::opengl::CRenderizable::setLocation(), mrpt::opengl::CRenderizable::setPose(), mrpt::opengl::CTexturedPlane::traceRay(), mrpt::opengl::CPolyhedron::traceRay(), and mrpt::opengl::CRenderizable::writeToStreamRender().

◆ m_scale_x

float mrpt::opengl::CRenderizable::m_scale_x
protectedinherited

◆ m_scale_y

float mrpt::opengl::CRenderizable::m_scale_y
protectedinherited

◆ m_scale_z

float mrpt::opengl::CRenderizable::m_scale_z
protectedinherited

◆ m_show_name

bool mrpt::opengl::CRenderizable::m_show_name
protectedinherited

◆ m_visible

bool mrpt::opengl::CRenderizable::m_visible
protectedinherited

◆ runtimeClassId

const mrpt::rtti::TRuntimeClassId mrpt::opengl::CSetOfObjects::runtimeClassId
staticprotected

Definition at line 30 of file CSetOfObjects.h.




Page generated by Doxygen 1.8.14 for MRPT 1.9.9 Git: ad3a9d8ae Tue May 1 23:10:22 2018 -0700 at lun oct 28 00:14:14 CET 2019
