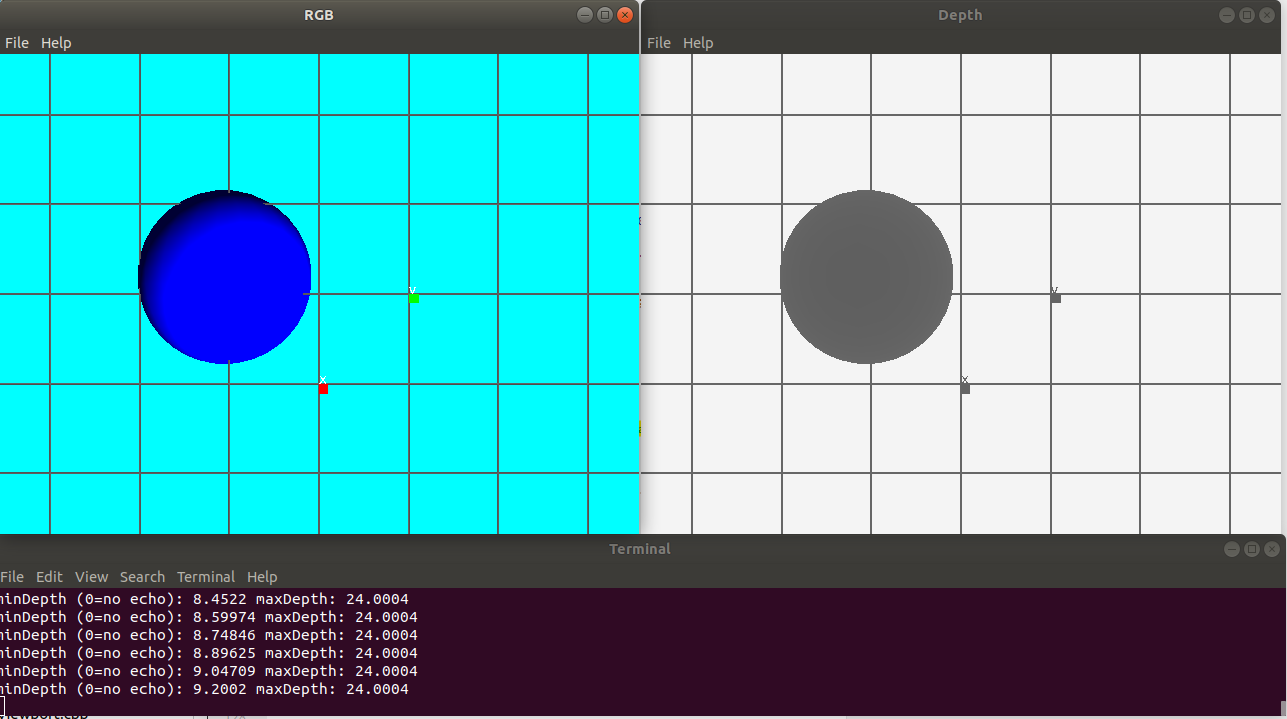

Example: gui_fbo_render_example

See: Tutorial: 3D scenes

C++ example source code:

/*                    _
                     | |    Mobile Robot Programming Toolkit (MRPT)
 _ __ ___  _ __ _ __ | |_
| '_ ` _ \| '__| '_ \| __|          https://www.mrpt.org/
| | | | | | |  | |_) | |_
|_| |_| |_|_|  | .__/ \__|     https://github.com/MRPT/mrpt/
               | |
               |_|

 Copyright (c) 2005-2026, Individual contributors, see AUTHORS file
 See: https://www.mrpt.org/Authors - All rights reserved.
 SPDX-License-Identifier: BSD-3-Clause
*/

#include <mrpt/gui/CDisplayWindow.h>
#include <mrpt/img/CImage.h>
#include <mrpt/opengl/CFBORender.h>
#include <mrpt/system/CTimeLogger.h>
#include <mrpt/viz/CAxis.h>
#include <mrpt/viz/CBox.h>
#include <mrpt/viz/CGridPlaneXY.h>
#include <mrpt/viz/CSphere.h>
#include <mrpt/viz/Scene.h>

#include <iostream>
#include <thread>

using namespace mrpt::literals;  // _deg
using namespace mrpt::gui;
using namespace mrpt::opengl;
using namespace mrpt::img;
using namespace std::literals;

// ------------------------------------------------------
//              TestDisplay3D
// ------------------------------------------------------
void TestDisplay3D()
{
  mrpt::viz::Scene scene;

  // Modify the scene:
  // ------------------------------------------------------
  {
    auto obj = mrpt::viz::CGridPlaneXY::Create(-20, 20, -20, 20, 0, 1);
    obj->setColor(0.4f, 0.4f, 0.4f);
    scene.insert(obj);
  }
  {
    auto obj =
        mrpt::viz::CBox::Create(mrpt::math::TPoint3D(0, 0, 0), mrpt::math::TPoint3D(.1, .1, .1));
    obj->setColor(1.0f, 0.f, 0.f);
    obj->setName("x");
    obj->enableShowName(true);
    obj->setLocation(1.0, 0, 0);
    scene.insert(obj);
  }
  {
    auto obj =
        mrpt::viz::CBox::Create(mrpt::math::TPoint3D(0, 0, 0), mrpt::math::TPoint3D(.1, .1, .1));
    obj->setColor(0.0f, 1.f, 0.f);
    obj->setName("y");
    obj->enableShowName(true);
    obj->setLocation(0, 1.0, 0);
    scene.insert(obj);
  }
  {
    auto obj = mrpt::viz::CTexturedPlane::Create();
    obj->setPlaneCorners(-10, 10, -10, 10);
    obj->setColor_u8(0x00, 0xff, 0xff, 0xff);
    obj->setLocation(0, 0, -14);
    scene.insert(obj);
  }
  {
    auto obj = mrpt::viz::CSphere::Create();
    obj->setColor(0, 0, 1);
    obj->setRadius(1.0f);
    obj->setLocation(0, 1, 0);
    obj->setName("ball_1");
    scene.insert(obj);
  }
  {
    auto obj = mrpt::viz::CSphere::Create();
    obj->setColor(1, 0, 0);
    obj->setRadius(2.f);
    obj->setLocation(-3, -1, 1);
    obj->setName("ball_2");
    scene.insert(obj);
  }

  mrpt::gui::CDisplayWindow win("RGB");
  mrpt::gui::CDisplayWindow winDepth("Depth");

  mrpt::system::CTimeLogger tl;

  int width = 500;
  int height = 400;
  const double cameraFOVdeg = 90.0;

  mrpt::opengl::CFBORender renderer(width, height);
  CImage frame(width, height, CH_RGB);
  mrpt::math::CMatrixFloat depth;

  scene.getViewport()->setCustomBackgroundColor({0.3f, 0.3f, 0.3f, 1.0f});
  const float clipMax = 25.0f;
  scene.getViewport()->setViewportClipDistances(0.1, clipMax);

  {
    mrpt::viz::CCamera& camera = renderer.getCameraOverride();

#if 0
        mrpt::img::TCamera c1;
        c1.ncols = width;
        c1.nrows = height;
        c1.fx(width * 0.5);
        c1.fy(width * 0.5);
        c1.cx(width / 2);
        c1.cy(height / 2);

        camera.setProjectiveFromPinhole(c1);
#else
    camera.setProjectiveFOVdeg(cameraFOVdeg);
#endif

#if 0
        // Define camera by orbit
        camera.setZoomDistance(10);
        camera.setAzimuthDegrees(0);
        camera.setElevationDegrees(90);
#else

    // Defined by setPose() instead of orbit values:
    camera.set6DOFMode(true);

    // Reference camera pose:
    auto robotPose =
        mrpt::poses::CPose3D(0, 0, 10.0, 0.0_deg /*yaw*/, 90.0_deg /*pitch*/, 0.0_deg /*roll*/);

    // Convert to +Z pointing forward camera axes:
    auto camPose = robotPose + mrpt::poses::CPose3D::FromYawPitchRoll(
                                   90.0_deg /*yaw*/, 0.0_deg /*pitch*/, 90.0_deg /*roll*/);

    // std::cout << "Camera SE(3) HM:\n" <<
    // camPose.getHomogeneousMatrixVal<mrpt::math::CMatrixDouble44>() <<
    // "\n";

    camera.setPose(camPose);

#endif
  }

  while (win.isOpen())
  {
    mrpt::viz::CVisualObject::Ptr obj = scene.getByName("ball_1");

    const double t = mrpt::Clock::nowDouble();
    obj->setLocation(1 + cos(t + 0.2) * 2, -2 + sin(t + 0.9) * 4, sin(t + 1.2) * 5);

    obj = scene.getByName("ball_2");
    const auto p1 = obj->getPose();
    obj->setLocation(
        p1.x + cos(p1.y / 2) * 0.01, p1.y - sin(p1.x / 2) * 0.09, p1.z - sin(p1.x / 2) * 0.08);

    tl.enter("render_RGBD");
    renderer.render_RGBD(scene, frame, depth);
    tl.leave("render_RGBD");

    // show the rendered RGB image
    win.showImage(frame);

    // Show depth:
    if (!depth.empty())
    {
      std::cout << "minDepth (0=no echo): " << depth.minCoeff() << " maxDepth: " << depth.maxCoeff()
                << "\n";

      mrpt::img::CImage imDepth;
      depth *= (1.0f / clipMax);
      imDepth.setFromMatrix(depth, true);
      winDepth.showImage(imDepth);
    }

    std::this_thread::sleep_for(25ms);
  }
}

// ------------------------------------------------------
//                      MAIN
// ------------------------------------------------------
int main([[maybe_unused]] int argc, [[maybe_unused]] char* argv[])
{
  try
  {
    TestDisplay3D();
    return 0;
  }
  catch (const std::exception& e)
  {
    std::cerr << "MRPT error: " << mrpt::exception_to_str(e) << "\n";
    return -1;
  }
}
