mrpt::obs::CObservation3DRangeScan Class Reference

Detailed Description

Declares a class derived from "CObservation" that encapsules a 3D range scan measurement, as from a time-of-flight range camera or any other RGBD sensor.

This kind of observations can carry one or more of these data fields:

  • 3D point cloud (as float's).
  • Each 3D point has its associated (u,v) pixel coordinates in points3D_idxs_x & points3D_idxs_y (New in MRPT 1.4.0)
  • 2D range image (as a matrix): Each entry in the matrix "rangeImage(ROW,COLUMN)" contains a distance or a depth (in meters), depending on range_is_depth.
  • 2D intensity (grayscale or RGB) image (as a mrpt::img::CImage): For SwissRanger cameras, a logarithmic A-law compression is used to convert the original 16bit intensity to a more standard 8bit graylevel.
  • 2D confidence image (as a mrpt::img::CImage): For each pixel, a 0x00 and a 0xFF mean the lowest and highest confidence levels, respectively.
  • Semantic labels: Stored as a matrix of bitfields, each bit having a user-defined meaning.

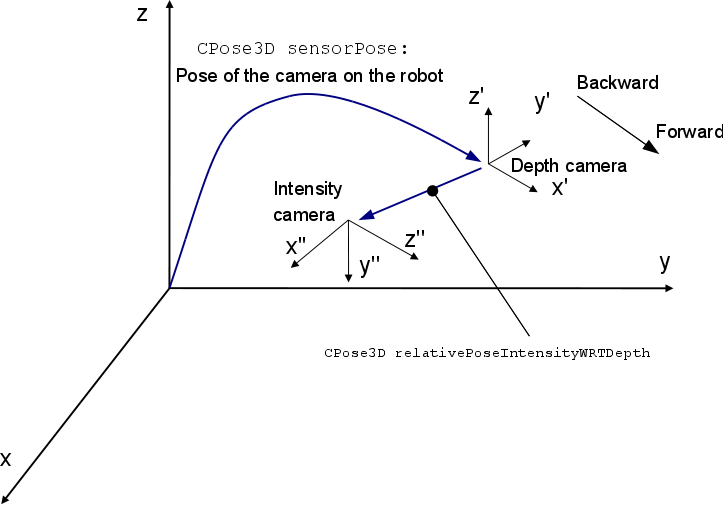

The coordinates of the 3D point cloud are in meters with respect to the depth camera origin of coordinates (in SwissRanger, the front face of the camera: a small offset ~1cm in front of the physical focal point), with the +X axis pointing forward, +Y pointing left-hand and +Z pointing up. By convention, a 3D point with its coordinates set to (0,0,0), will be considered as invalid. The field CObservation3DRangeScan::relativePoseIntensityWRTDepth describes the change of coordinates from the depth camera to the intensity (RGB or grayscale) camera. In a SwissRanger camera both cameras coincide, so this pose is just a rotation (0,0,0,-90deg,0,-90deg). But in Microsoft Kinect there is also an offset, as shown in this figure:

In any case, check the field relativePoseIntensityWRTDepth, or the method doDepthAndIntensityCamerasCoincide() to determine if both frames of reference coincide, since even for Kinect cameras both can coincide if the images have been rectified.

The 2D images and matrices are stored as common images, with an up->down rows order and left->right, as usual. Optionally, the intensity and confidence channels can be set to delayed-load images for off-rawlog storage so it saves memory by having loaded in memory just the needed images. See the methods load() and unload(). Due to the intensive storage requirements of this kind of observations, this observation is the only one in MRPT for which it's recommended to always call "load()" and "unload()" before and after using the observation, ONLY when the observation was read from a rawlog dataset, in order to make sure that all the externally stored data fields are loaded and ready in memory.

Classes that grab observations of this type are:

There are two sets of calibration parameters (see mrpt::vision::checkerBoardStereoCalibration() or the ready-to-use GUI program kinect-calibrate):

  • cameraParams: Projection parameters of the depth camera.
  • cameraParamsIntensity: Projection parameters of the intensity (gray-level or RGB) camera.

In some cameras, like SwissRanger, both are the same. It is possible in Kinect to rectify the range images such both cameras seem to coincide and then both sets of camera parameters will be identical.

Range data can be interpreted in two different ways depending on the 3D camera (this field is already set to the correct setting when grabbing observations from an mrpt::hwdrivers sensor):

  • range_is_depth=true -> Kinect-like ranges: entries of rangeImage are distances along the +X axis
  • range_is_depth=false -> Ranges in rangeImage are actual distances in 3D.

The "intensity" channel may come from different channels in sesnsors as Kinect. Look at field intensityImageChannel to find out if the image was grabbed from the visible (RGB) or IR channels.

3D point clouds can be generated at any moment after grabbing with CObservation3DRangeScan::project3DPointsFromDepthImage() and CObservation3DRangeScan::project3DPointsFromDepthImageInto(), provided the correct calibration parameters. Note that project3DPointsFromDepthImage() will store the point cloud in sensor-centric local coordinates. Use project3DPointsFromDepthImageInto() to directly obtain vehicle or world coordinates.

Example of how to assign labels to pixels (for object segmentation, semantic information, etc.):

// Assume obs of type CObservation3DRangeScan::Ptr
*CObservation3DRangeScan::TPixelLabelInfo<NUM_BYTES>() );
obs->pixelLabels->setSize(ROWS,COLS);
obs->pixelLabels->setLabel(col,row, label_idx); // label_idxs =
[0,2^NUM_BYTES-1]
//...
Note
Starting at serialization version 2 (MRPT 0.9.1+), the confidence channel is stored as an image instead of a matrix to optimize memory and disk space.
Starting at serialization version 3 (MRPT 0.9.1+), the 3D point cloud and the rangeImage can both be stored externally to save rawlog space.
Starting at serialization version 5 (MRPT 0.9.5+), the new field range_is_depth
Starting at serialization version 6 (MRPT 0.9.5+), the new field intensityImageChannel
Starting at serialization version 7 (MRPT 1.3.1+), new fields for semantic labeling
Since MRPT 1.5.0, external files format can be selected at runtime with CObservation3DRangeScan::EXTERNALS_AS_TEXT
See also
mrpt::hwdrivers::CSwissRanger3DCamera, mrpt::hwdrivers::CKinect, CObservation

Definition at line 227 of file CObservation3DRangeScan.h.

#include <mrpt/obs/CObservation3DRangeScan.h>

Inheritance diagram for mrpt::obs::CObservation3DRangeScan:
Inheritance graph

Classes

struct  TCached3DProjTables
 Look-up-table struct for project3DPointsFromDepthImageInto() More...

struct  TPixelLabelInfo

struct  TPixelLabelInfoBase
 Virtual interface to all pixel-label information structs. More...


Public Member Functions

voidoperator new (size_t size)

voidoperator new[] (size_t size)

void operator delete (void *ptr) noexcept

void operator delete[] (void *ptr) noexcept

void operator delete (void *memory, void *ptr) noexcept

voidoperator new (size_t size, const std::nothrow_t &) noexcept

void operator delete (void *ptr, const std::nothrow_t &) noexcept

 CObservation3DRangeScan ()
 Default constructor. More...

virtual ~CObservation3DRangeScan ()
 Destructor. More...

template<class POINTMAP >
void project3DPointsFromDepthImageInto (POINTMAP &dest_pointcloud, const T3DPointsProjectionParams &projectParams, const TRangeImageFilterParams &filterParams=TRangeImageFilterParams())
 Project the RGB+D images into a 3D point cloud (with color if the target map supports it) and optionally at a given 3D pose. More...

void project3DPointsFromDepthImage (const bool PROJ3D_USE_LUT=true)
 This method is equivalent to project3DPointsFromDepthImageInto() storing the projected 3D points (without color, in local sensor-centric coordinates) in this same class. More...

void convertTo2DScan (mrpt::obs::CObservation2DRangeScan &out_scan2d, const T3DPointsTo2DScanParams &scanParams, const TRangeImageFilterParams &filterParams=TRangeImageFilterParams())
 Convert this 3D observation into an "equivalent 2D fake laser scan", with a configurable vertical FOV. More...

void getDescriptionAsText (std::ostream &o) const override
 Build a detailed, multi-line textual description of the observation contents and dump it to the output stream. More...

void swap (CObservation3DRangeScan &o)
 Very efficient method to swap the contents of two observations. More...

void getZoneAsObs (CObservation3DRangeScan &obs, const unsigned int &r1, const unsigned int &r2, const unsigned int &c1, const unsigned int &c2)
 Extract a ROI of the 3D observation as a new one. More...

template<class METRICMAP >
bool insertObservationInto (METRICMAP *theMap, const mrpt::poses::CPose3D *robotPose=nullptr) const
 This method is equivalent to: More...

void getSensorPose (mrpt::math::TPose3D &out_sensorPose) const
 A general method to retrieve the sensor pose on the robot. More...

void setSensorPose (const mrpt::math::TPose3D &newSensorPose)
 A general method to change the sensor pose on the robot. More...

virtual mxArraywriteToMatlab () const
 Introduces a pure virtual method responsible for writing to a mxArray Matlab object, typically a MATLAB struct whose contents are documented in each derived class. More...

Delayed-load manual control methods.
virtual void load () const override
 Makes sure all images and other fields which may be externally stored are loaded in memory. More...

virtual void unload () override
 Unload all images, for the case they being delayed-load images stored in external files (othewise, has no effect). More...

Point cloud external storage functions
bool points3D_isExternallyStored () const

std::string points3D_getExternalStorageFile () const

void points3D_getExternalStorageFileAbsolutePath (std::string &out_path) const

std::string points3D_getExternalStorageFileAbsolutePath () const

void points3D_convertToExternalStorage (const std::string &fileName, const std::string &use_this_base_dir)
 Users won't normally want to call this, it's only used from internal MRPT programs. More...

Range Matrix external storage functions
bool rangeImage_isExternallyStored () const

std::string rangeImage_getExternalStorageFile () const

void rangeImage_getExternalStorageFileAbsolutePath (std::string &out_path) const

std::string rangeImage_getExternalStorageFileAbsolutePath () const

void rangeImage_convertToExternalStorage (const std::string &fileName, const std::string &use_this_base_dir)
 Users won't normally want to call this, it's only used from internal MRPT programs. More...

void rangeImage_forceResetExternalStorage ()
 Forces marking this observation as non-externally stored - it doesn't anything else apart from reseting the corresponding flag (Users won't normally want to call this, it's only used from internal MRPT programs) More...

RTTI classes and functions for polymorphic hierarchies
mrpt::rtti::CObject::Ptr duplicateGetSmartPtr () const
 Returns a copy of the object, indepently of its class, as a smart pointer (the newly created object will exist as long as any copy of this smart pointer). More...


Static Public Member Functions

static voidoperator new (size_t size, void *ptr)

static void EXTERNALS_AS_TEXT (bool value)
 Whether external files (3D points, range and confidence) are to be saved as .txt text files (MATLAB compatible) or *.bin binary (faster). More...

static bool EXTERNALS_AS_TEXT ()

static double recoverCameraCalibrationParameters (const CObservation3DRangeScan &in_obs, mrpt::img::TCamera &out_camParams, const double camera_offset=0.01)
 A Levenberg-Marquart-based optimizer to recover the calibration parameters of a 3D camera given a range (depth) image and the corresponding 3D point cloud. More...

static TCached3DProjTablesget_3dproj_lut ()
 3D point cloud projection look-up-table More...


Public Attributes

Confidence "channel"
bool hasConfidenceImage
 true means the field confidenceImage contains valid data More...

mrpt::img::CImage confidenceImage
 If hasConfidenceImage=true, an image with the "confidence" value [range 0-255] as estimated by the capture drivers. More...


Protected Member Functions

void swap (CObservation &o)
 Swap with another observation, ONLY the data defined here in the base class CObservation. More...

CSerializable virtual methods
uint8_t serializeGetVersion () const override
 Must return the current versioning number of the object. More...

void serializeTo (mrpt::serialization::CArchive &out) const override
 Pure virtual method for writing (serializing) to an abstract archive. More...

void serializeFrom (mrpt::serialization::CArchive &in, uint8_t serial_version) override
 Pure virtual method for reading (deserializing) from an abstract archive. More...


Protected Attributes

bool m_points3D_external_stored
 If set to true, m_points3D_external_file is valid. More...

std::string m_points3D_external_file
 3D points are in CImage::getImagesPathBase()+<this_file_name> More...

bool m_rangeImage_external_stored
 If set to true, m_rangeImage_external_file is valid. More...

std::string m_rangeImage_external_file
 rangeImage is in CImage::getImagesPathBase()+<this_file_name> More...


Data common to any observation

mrpt::system::TTimeStamp timestamp {mrpt::system::now()}
 The associated UTC time-stamp. More...

std::string sensorLabel
 An arbitrary label that can be used to identify the sensor. More...

mrpt::system::TTimeStamp getTimeStamp () const
 Returns CObservation::timestamp for all kind of observations. More...

virtual mrpt::system::TTimeStamp getOriginalReceivedTimeStamp () const
 By default, returns CObservation::timestamp but in sensors capable of satellite (or otherwise) accurate UTC timing of readings, this contains the computer-based timestamp of reception, which may be slightly different than timestamp. More...


RTTI stuff

using Ptr = std::shared_ptr< CObservation3DRangeScan >

using ConstPtr = std::shared_ptr< const CObservation3DRangeScan >

using UniquePtr = std::unique_ptr< CObservation3DRangeScan >

using ConstUniquePtr = std::unique_ptr< const CObservation3DRangeScan >

static mrpt::rtti::CLASSINIT _init_CObservation3DRangeScan

static const mrpt::rtti::TRuntimeClassId runtimeClassId

static constexpr const char * className = "CObservation3DRangeScan"

static const mrpt::rtti::TRuntimeClassId_GetBaseClass ()

static constexpr auto getClassName ()

static const mrpt::rtti::TRuntimeClassIdGetRuntimeClassIdStatic ()

static mrpt::rtti::CObjectCreateObject ()

template<typename... Args>
static Ptr Create (Args &&... args)

template<typename... Args>
static UniquePtr CreateUnique (Args &&... args)

virtual const mrpt::rtti::TRuntimeClassIdGetRuntimeClass () const override
 Returns information about the class of an object in runtime. More...

virtual mrpt::rtti::CObjectclone () const override
 Returns a deep copy (clone) of the object, indepently of its class. More...


Point cloud

bool hasPoints3D
 true means the field points3D contains valid data. More...

std::vector< float > points3D_x
 If hasPoints3D=true, the (X,Y,Z) coordinates of the 3D point cloud detected by the camera. More...

std::vector< float > points3D_y

std::vector< float > points3D_z

std::vector< uint16_tpoints3D_idxs_x
 If hasPoints3D=true, the (x,y) pixel coordinates for each (X,Y,Z) point in points3D_x, points3D_y, points3D_z. More...

std::vector< uint16_tpoints3D_idxs_y

void resizePoints3DVectors (const size_t nPoints)
 Use this method instead of resizing all three points3D_x, points3D_y & points3D_z to allow the usage of the internal memory pool. More...

size_t getScanSize () const
 Get the size of the scan pointcloud. More...


Range (depth) image

bool hasRangeImage
 true means the field rangeImage contains valid data More...

mrpt::math::CMatrix rangeImage
 If hasRangeImage=true, a matrix of floats with the range data as captured by the camera (in meters) More...

bool range_is_depth
 true: Kinect-like ranges: entries of rangeImage are distances along the +X axis; false: Ranges in rangeImage are actual distances in 3D. More...

void rangeImage_setSize (const int HEIGHT, const int WIDTH)
 Similar to calling "rangeImage.setSize(H,W)" but this method provides memory pooling to speed-up the memory allocation. More...


Intensity (RGB) channels

enum  TIntensityChannelID { CH_VISIBLE = 0, CH_IR = 1 }
 Enum type for intensityImageChannel. More...

bool hasIntensityImage
 true means the field intensityImage contains valid data More...

mrpt::img::CImage intensityImage
 If hasIntensityImage=true, a color or gray-level intensity image of the same size than "rangeImage". More...

TIntensityChannelID intensityImageChannel
 The source of the intensityImage; typically the visible channel. More...


Pixel-wise classification labels (for semantic labeling, etc.)

TPixelLabelInfoBase::Ptr pixelLabels
 All information about pixel labeling is stored in this (smart pointer to) structure; refer to TPixelLabelInfo for details on the contents User is responsible of creating a new object of the desired data type. More...

bool hasPixelLabels () const
 Returns true if the field CObservation3DRangeScan::pixelLabels contains a non-NULL smart pointer. More...


Sensor parameters

mrpt::img::TCamera cameraParams
 Projection parameters of the depth camera. More...

mrpt::img::TCamera cameraParamsIntensity
 Projection parameters of the intensity (graylevel or RGB) camera. More...

mrpt::poses::CPose3D relativePoseIntensityWRTDepth
 Relative pose of the intensity camera wrt the depth camera (which is the coordinates origin for this observation). More...

float maxRange
 The maximum range allowed by the device, in meters (e.g. More...

mrpt::poses::CPose3D sensorPose
 The 6D pose of the sensor on the robot. More...

float stdError
 The "sigma" error of the device in meters, used while inserting the scan in an occupancy grid. More...

bool doDepthAndIntensityCamerasCoincide () const
 Return true if relativePoseIntensityWRTDepth equals the pure rotation (0,0,0,-90deg,0,-90deg) (with a small comparison epsilon) More...

void getSensorPose (mrpt::poses::CPose3D &out_sensorPose) const override
 A general method to retrieve the sensor pose on the robot. More...

void setSensorPose (const mrpt::poses::CPose3D &newSensorPose) override
 A general method to change the sensor pose on the robot. More...


Member Typedef Documentation

◆ ConstPtr

◆ ConstUniquePtr

◆ Ptr

A type for the associated smart pointer

Definition at line 229 of file CObservation3DRangeScan.h.

◆ UniquePtr

Member Enumeration Documentation

◆ TIntensityChannelID

Enum type for intensityImageChannel.

Enumerator
CH_VISIBLE

Grayscale or RGB visible channel of the camera sensor.

CH_IR

Infrarred (IR) channel.

Definition at line 493 of file CObservation3DRangeScan.h.

Constructor & Destructor Documentation

◆ CObservation3DRangeScan()

CObservation3DRangeScan::CObservation3DRangeScan ( )

Default constructor.

Definition at line 168 of file CObservation3DRangeScan.cpp.

◆ ~CObservation3DRangeScan()

CObservation3DRangeScan::~CObservation3DRangeScan ( )
virtual

Destructor.

Definition at line 188 of file CObservation3DRangeScan.cpp.

References mempool_donate_range_matrix(), and mempool_donate_xyz_buffers().

Member Function Documentation

◆ _GetBaseClass()

static const mrpt::rtti::TRuntimeClassId* mrpt::obs::CObservation3DRangeScan::_GetBaseClass ( )
staticprotected

◆ clone()

virtual mrpt::rtti::CObject* mrpt::obs::CObservation3DRangeScan::clone ( ) const
overridevirtual

Returns a deep copy (clone) of the object, indepently of its class.

Implements mrpt::rtti::CObject.

◆ convertTo2DScan()

void CObservation3DRangeScan::convertTo2DScan ( mrpt::obs::CObservation2DRangeScan out_scan2d,
const T3DPointsTo2DScanParams scanParams,
const TRangeImageFilterParams filterParams = TRangeImageFilterParams()
)

Convert this 3D observation into an "equivalent 2D fake laser scan", with a configurable vertical FOV.

The result is a 2D laser scan with more "rays" (N) than columns has the 3D observation (W), exactly: N = W * oversampling_ratio. This oversampling is required since laser scans sample the space at evenly-separated angles, while a range camera follows a tangent-like distribution. By oversampling we make sure we don't leave "gaps" unseen by the virtual "2D laser".

All obstacles within a frustum are considered and the minimum distance is kept in each direction. The horizontal FOV of the frustum is automatically computed from the intrinsic parameters, but the vertical FOV must be provided by the user, and can be set to be assymetric which may be useful depending on the zone of interest where to look for obstacles.

All spatial transformations are riguorosly taken into account in this class, using the depth camera intrinsic calibration parameters.

The timestamp of the new object is copied from the 3D object. Obviously, a requisite for calling this method is the 3D observation having range data, i.e. hasRangeImage must be true. It's not needed to have RGB data nor the raw 3D point clouds for this method to work.

If scanParams.use_origin_sensor_pose is true, the points will be projected to 3D and then reprojected as seen from a different sensorPose at the vehicle frame origin. Otherwise (the default), the output 2D observation will share the sensorPose of the input 3D scan (using a more efficient algorithm that avoids trigonometric functions).

Parameters
[out]out_scan2dThe resulting 2D equivalent scan.
See also
The example in http://www.mrpt.org/tutorials/mrpt-examples/example-kinect-to-2d-laser-demo/

Definition at line 946 of file CObservation3DRangeScan.cpp.

References mrpt::obs::T3DPointsTo2DScanParams::angle_inf, mrpt::obs::T3DPointsTo2DScanParams::angle_sup, mrpt::obs::CObservation2DRangeScan::aperture, ASSERT_ABOVE_, ASSERT_EQUAL_, cameraParams, mrpt::img::TCamera::cx(), mrpt::img::TCamera::cy(), mrpt::obs::TRangeImageFilter::do_range_filter(), mrpt::img::TCamera::fx(), mrpt::img::TCamera::fy(), hasRangeImage, mrpt::keep_min(), mrpt::obs::CObservation2DRangeScan::maxRange, maxRange, min, mrpt::obs::T3DPointsTo2DScanParams::oversampling_ratio, project3DPointsFromDepthImageInto(), rangeImage, mrpt::obs::TRangeImageFilterParams::rangeMask_max, mrpt::obs::TRangeImageFilterParams::rangeMask_min, mrpt::obs::CObservation2DRangeScan::resizeScan(), mrpt::obs::CObservation2DRangeScan::resizeScanAndAssign(), mrpt::obs::CObservation2DRangeScan::rightToLeft, mrpt::obs::CObservation2DRangeScan::scan, mrpt::obs::CObservation::sensorLabel, mrpt::obs::CObservation2DRangeScan::sensorPose, sensorPose, mrpt::obs::CObservation2DRangeScan::setScanRange(), mrpt::obs::CObservation2DRangeScan::setScanRangeValidity(), mrpt::obs::T3DPointsProjectionParams::takeIntoAccountSensorPoseOnRobot, mrpt::obs::CObservation::timestamp, mrpt::obs::T3DPointsTo2DScanParams::use_origin_sensor_pose, mrpt::obs::T3DPointsTo2DScanParams::z_max, and mrpt::obs::T3DPointsTo2DScanParams::z_min.

◆ Create()

template<typename... Args>
static Ptr mrpt::obs::CObservation3DRangeScan::Create ( Args &&...  args)
inlinestatic

Definition at line 229 of file CObservation3DRangeScan.h.

◆ CreateObject()

static mrpt::rtti::CObject* mrpt::obs::CObservation3DRangeScan::CreateObject ( )
static

◆ CreateUnique()

template<typename... Args>
static UniquePtr mrpt::obs::CObservation3DRangeScan::CreateUnique ( Args &&...  args)
inlinestatic

Definition at line 229 of file CObservation3DRangeScan.h.

◆ doDepthAndIntensityCamerasCoincide()

bool CObservation3DRangeScan::doDepthAndIntensityCamerasCoincide ( ) const

Return true if relativePoseIntensityWRTDepth equals the pure rotation (0,0,0,-90deg,0,-90deg) (with a small comparison epsilon)

See also
relativePoseIntensityWRTDepth

Definition at line 931 of file CObservation3DRangeScan.cpp.

References mrpt::DEG2RAD(), mrpt::poses::CPose3D::getRotationMatrix(), mrpt::poses::CPose3D::m_coords, and relativePoseIntensityWRTDepth.

Referenced by mrpt::obs::detail::project3DPointsFromDepthImageInto().

◆ duplicateGetSmartPtr()

mrpt::rtti::CObject::Ptr CObject::duplicateGetSmartPtr ( ) const
inlineinherited

Returns a copy of the object, indepently of its class, as a smart pointer (the newly created object will exist as long as any copy of this smart pointer).

Definition at line 168 of file CObject.h.

References mrpt::rtti::CObject::clone().

Referenced by mrpt::obs::CRawlog::addActions(), and mrpt::obs::CRawlog::addObservations().

◆ EXTERNALS_AS_TEXT() [1/2]

void CObservation3DRangeScan::EXTERNALS_AS_TEXT ( bool  value)
static

Whether external files (3D points, range and confidence) are to be saved as .txt text files (MATLAB compatible) or *.bin binary (faster).

Loading always will determine the type by inspecting the file extension.

Note
Default=false

Definition at line 49 of file CObservation3DRangeScan.cpp.

References EXTERNALS_AS_TEXT_value.

◆ EXTERNALS_AS_TEXT() [2/2]

bool CObservation3DRangeScan::EXTERNALS_AS_TEXT ( )
static

Definition at line 53 of file CObservation3DRangeScan.cpp.

References EXTERNALS_AS_TEXT_value.

◆ get_3dproj_lut()

CObservation3DRangeScan::TCached3DProjTables & CObservation3DRangeScan::get_3dproj_lut ( )
static

3D point cloud projection look-up-table

See also
project3DPointsFromDepthImage

Definition at line 43 of file CObservation3DRangeScan.cpp.

References lut_3dproj.

Referenced by mrpt::obs::detail::project3DPointsFromDepthImageInto().

◆ getClassName()

static constexpr auto mrpt::obs::CObservation3DRangeScan::getClassName ( )
inlinestatic

Definition at line 229 of file CObservation3DRangeScan.h.

◆ getDescriptionAsText()

◆ getOriginalReceivedTimeStamp()

virtual mrpt::system::TTimeStamp mrpt::obs::CObservation::getOriginalReceivedTimeStamp ( ) const
inlinevirtualinherited

By default, returns CObservation::timestamp but in sensors capable of satellite (or otherwise) accurate UTC timing of readings, this contains the computer-based timestamp of reception, which may be slightly different than timestamp.

See also
getTimeStamp()

Reimplemented in mrpt::obs::CObservationGPS, and mrpt::obs::CObservationVelodyneScan.

Definition at line 71 of file CObservation.h.

References mrpt::obs::CObservation::timestamp.

◆ GetRuntimeClass()

virtual const mrpt::rtti::TRuntimeClassId* mrpt::obs::CObservation3DRangeScan::GetRuntimeClass ( ) const
overridevirtual

Returns information about the class of an object in runtime.

Reimplemented from mrpt::obs::CObservation.

◆ GetRuntimeClassIdStatic()

static const mrpt::rtti::TRuntimeClassId& mrpt::obs::CObservation3DRangeScan::GetRuntimeClassIdStatic ( )
static

◆ getScanSize()

size_t CObservation3DRangeScan::getScanSize ( ) const

Get the size of the scan pointcloud.

Note
Method is added for compatibility with its CObservation2DRangeScan counterpart

Definition at line 894 of file CObservation3DRangeScan.cpp.

References points3D_x.

◆ getSensorPose() [1/2]

void CObservation::getSensorPose ( mrpt::math::TPose3D out_sensorPose) const
inherited

A general method to retrieve the sensor pose on the robot.

Note that most sensors will return a full (6D) CPose3D, but see the derived classes for more details or special cases.

See also
setSensorPose

Definition at line 26 of file CObservation.cpp.

◆ getSensorPose() [2/2]

void mrpt::obs::CObservation3DRangeScan::getSensorPose ( mrpt::poses::CPose3D out_sensorPose) const
inlineoverridevirtual

A general method to retrieve the sensor pose on the robot.

Note that most sensors will return a full (6D) CPose3D, but see the derived classes for more details or special cases.

See also
setSensorPose

Implements mrpt::obs::CObservation.

Definition at line 752 of file CObservation3DRangeScan.h.

References sensorPose.

◆ getTimeStamp()

mrpt::system::TTimeStamp mrpt::obs::CObservation::getTimeStamp ( ) const
inlineinherited

Returns CObservation::timestamp for all kind of observations.

See also
getOriginalReceivedTimeStamp()

Definition at line 66 of file CObservation.h.

References mrpt::obs::CObservation::timestamp.

◆ getZoneAsObs()

void CObservation3DRangeScan::getZoneAsObs ( CObservation3DRangeScan obs,
const unsigned int &  r1,
const unsigned int &  r2,
const unsigned int &  c1,
const unsigned int &  c2
)

◆ hasPixelLabels()

bool mrpt::obs::CObservation3DRangeScan::hasPixelLabels ( ) const
inline

Returns true if the field CObservation3DRangeScan::pixelLabels contains a non-NULL smart pointer.

To enhance a 3D point cloud with labeling info, just assign an appropiate object to pixelLabels

Definition at line 527 of file CObservation3DRangeScan.h.

References pixelLabels.

Referenced by getDescriptionAsText(), and serializeTo().

◆ insertObservationInto()

template<class METRICMAP >
bool mrpt::obs::CObservation::insertObservationInto ( METRICMAP *  theMap,
const mrpt::poses::CPose3D robotPose = nullptr
) const
inlineinherited

This method is equivalent to:

map->insertObservation(this, robotPose)
Parameters
theMapThe map where this observation is to be inserted: the map will be updated.
robotPoseThe pose of the robot base for this observation, relative to the target metric map. Set to nullptr (default) to use (0,0,0deg)
Returns
Returns true if the map has been updated, or false if this observations has nothing to do with a metric map (for example, a sound observation).

See: Maps and observations compatibility matrix

See also
CMetricMap, CMetricMap::insertObservation

Definition at line 99 of file CObservation.h.

Referenced by mrpt::maps::COccupancyGridMap2D::computeObservationLikelihood_CellsDifference().

◆ load()

void CObservation3DRangeScan::load ( ) const
overridevirtual

Makes sure all images and other fields which may be externally stored are loaded in memory.

Note that for all CImages, calling load() is not required since the images will be automatically loaded upon first access, so load() shouldn't be needed to be called in normal cases by the user. If all the data were alredy loaded or this object has no externally stored data fields, calling this method has no effects.

See also
unload

Reimplemented from mrpt::obs::CObservation.

Definition at line 437 of file CObservation3DRangeScan.cpp.

References mrpt::serialization::archiveFrom(), ASSERT_EQUAL_, mrpt::system::extractFileExtension(), hasPoints3D, hasRangeImage, loadFromTextFile(), m_points3D_external_stored, m_rangeImage_external_stored, points3D_getExternalStorageFileAbsolutePath(), points3D_x, points3D_y, points3D_z, rangeImage, rangeImage_getExternalStorageFileAbsolutePath(), and mrpt::system::strCmpI().

Referenced by getDescriptionAsText(), mrpt::maps::COctoMapBase< octomap::OcTree, octomap::OcTreeNode >::internal_build_PointCloud_for_observation(), mrpt::maps::CColouredOctoMap::internal_insertObservation(), and mrpt::graphslam::deciders::CICPCriteriaERD< GRAPH_T >::updateState().

◆ operator delete() [1/3]

void mrpt::obs::CObservation3DRangeScan::operator delete ( void ptr,
const std::nothrow_t &
)
inlinenoexcept

Definition at line 229 of file CObservation3DRangeScan.h.

◆ operator delete() [2/3]

void mrpt::obs::CObservation3DRangeScan::operator delete ( void ptr)
inlinenoexcept

Definition at line 229 of file CObservation3DRangeScan.h.

◆ operator delete() [3/3]

void mrpt::obs::CObservation3DRangeScan::operator delete ( void memory,
void ptr
)
inlinenoexcept

Definition at line 229 of file CObservation3DRangeScan.h.

◆ operator delete[]()

void mrpt::obs::CObservation3DRangeScan::operator delete[] ( void ptr)
inlinenoexcept

Definition at line 229 of file CObservation3DRangeScan.h.

◆ operator new() [1/3]

void* mrpt::obs::CObservation3DRangeScan::operator new ( size_t  size)
inline

Definition at line 229 of file CObservation3DRangeScan.h.

◆ operator new() [2/3]

static void* mrpt::obs::CObservation3DRangeScan::operator new ( size_t  size,
void ptr
)
inlinestatic

Definition at line 229 of file CObservation3DRangeScan.h.

◆ operator new() [3/3]

void* mrpt::obs::CObservation3DRangeScan::operator new ( size_t  size,
const std::nothrow_t &
)
inlinenoexcept

Definition at line 229 of file CObservation3DRangeScan.h.

◆ operator new[]()

void* mrpt::obs::CObservation3DRangeScan::operator new[] ( size_t  size)
inline

Definition at line 229 of file CObservation3DRangeScan.h.

◆ points3D_convertToExternalStorage()

void CObservation3DRangeScan::points3D_convertToExternalStorage ( const std::string fileName,
const std::string use_this_base_dir
)

◆ points3D_getExternalStorageFile()

std::string mrpt::obs::CObservation3DRangeScan::points3D_getExternalStorageFile ( ) const
inline

Definition at line 423 of file CObservation3DRangeScan.h.

References m_points3D_external_file.

Referenced by getDescriptionAsText().

◆ points3D_getExternalStorageFileAbsolutePath() [1/2]

void CObservation3DRangeScan::points3D_getExternalStorageFileAbsolutePath ( std::string out_path) const

Definition at line 515 of file CObservation3DRangeScan.cpp.

References ASSERT_, and m_points3D_external_file.

◆ points3D_getExternalStorageFileAbsolutePath() [2/2]

std::string mrpt::obs::CObservation3DRangeScan::points3D_getExternalStorageFileAbsolutePath ( ) const
inline

Definition at line 429 of file CObservation3DRangeScan.h.

Referenced by load(), and points3D_convertToExternalStorage().

◆ points3D_isExternallyStored()

bool mrpt::obs::CObservation3DRangeScan::points3D_isExternallyStored ( ) const
inline

◆ project3DPointsFromDepthImage()

void mrpt::obs::CObservation3DRangeScan::project3DPointsFromDepthImage ( const bool  PROJ3D_USE_LUT = true)
inline

This method is equivalent to project3DPointsFromDepthImageInto() storing the projected 3D points (without color, in local sensor-centric coordinates) in this same class.

For new code it's recommended to use instead project3DPointsFromDepthImageInto() which is much more versatile.

Definition at line 332 of file CObservation3DRangeScan.h.

References project3DPointsFromDepthImageInto().

Referenced by mrpt::hwdrivers::COpenNI2Sensor::getNextObservation(), and mrpt::hwdrivers::CKinect::getNextObservation().

◆ project3DPointsFromDepthImageInto()

template<class POINTMAP >
void mrpt::obs::CObservation3DRangeScan::project3DPointsFromDepthImageInto ( POINTMAP &  dest_pointcloud,
const T3DPointsProjectionParams projectParams,
const TRangeImageFilterParams filterParams = TRangeImageFilterParams()
)
inline

Project the RGB+D images into a 3D point cloud (with color if the target map supports it) and optionally at a given 3D pose.

The 3D point coordinates are computed from the depth image (rangeImage) and the depth camera camera parameters (cameraParams). There exist two set of formulas for projecting the i'th point, depending on the value of "range_is_depth". In all formulas below, "rangeImage" is the matrix of ranges and the pixel coordinates are (r,c).

1) [range_is_depth=true] With "range equals depth" or "Kinect-like depth mode": the range values are in fact distances along the "+X" axis, not real 3D ranges (this is the way Kinect reports ranges):

x(i) = rangeImage(r,c)
y(i) = (r_cx - c) * x(i) / r_fx
z(i) = (r_cy - r) * x(i) / r_fy

2) [range_is_depth=false] With "normal ranges": range means distance in 3D. This must be set when processing data from the SwissRange 3D camera, among others.

Ky = (r_cx - c)/r_fx
Kz = (r_cy - r)/r_fy
x(i) = rangeImage(r,c) / sqrt( 1 + Ky^2 + Kz^2 )
y(i) = Ky * x(i)
z(i) = Kz * x(i)

The color of each point is determined by projecting the 3D local point into the RGB image using cameraParamsIntensity.

By default the local (sensor-centric) coordinates of points are directly stored into the local map, but if indicated so in takeIntoAccountSensorPoseOnRobot the points are transformed with sensorPose. Furthermore, if provided, those coordinates are transformed with robotPoseInTheWorld

Template Parameters
POINTMAPSupported maps are all those covered by mrpt::opengl::PointCloudAdapter (mrpt::maps::CPointsMap and derived, mrpt::opengl::CPointCloudColoured, PCL point clouds,...)
Note
In MRPT < 0.9.5, this method always assumes that ranges were in Kinect-like format.

Definition at line 318 of file CObservation3DRangeScan.h.

Referenced by convertTo2DScan(), project3DPointsFromDepthImage(), and TEST().

◆ rangeImage_convertToExternalStorage()

void CObservation3DRangeScan::rangeImage_convertToExternalStorage ( const std::string fileName,
const std::string use_this_base_dir
)

◆ rangeImage_forceResetExternalStorage()

void mrpt::obs::CObservation3DRangeScan::rangeImage_forceResetExternalStorage ( )
inline

Forces marking this observation as non-externally stored - it doesn't anything else apart from reseting the corresponding flag (Users won't normally want to call this, it's only used from internal MRPT programs)

Definition at line 484 of file CObservation3DRangeScan.h.

References m_rangeImage_external_stored.

◆ rangeImage_getExternalStorageFile()

std::string mrpt::obs::CObservation3DRangeScan::rangeImage_getExternalStorageFile ( ) const
inline

Definition at line 464 of file CObservation3DRangeScan.h.

References m_rangeImage_external_file.

Referenced by getDescriptionAsText().

◆ rangeImage_getExternalStorageFileAbsolutePath() [1/2]

void CObservation3DRangeScan::rangeImage_getExternalStorageFileAbsolutePath ( std::string out_path) const

Definition at line 495 of file CObservation3DRangeScan.cpp.

References ASSERT_, and m_rangeImage_external_file.

◆ rangeImage_getExternalStorageFileAbsolutePath() [2/2]

std::string mrpt::obs::CObservation3DRangeScan::rangeImage_getExternalStorageFileAbsolutePath ( ) const
inline

Definition at line 470 of file CObservation3DRangeScan.h.

Referenced by load(), and rangeImage_convertToExternalStorage().

◆ rangeImage_isExternallyStored()

bool mrpt::obs::CObservation3DRangeScan::rangeImage_isExternallyStored ( ) const
inline

◆ rangeImage_setSize()

void CObservation3DRangeScan::rangeImage_setSize ( const int  HEIGHT,
const int  WIDTH
)

◆ recoverCameraCalibrationParameters()

double CObservation3DRangeScan::recoverCameraCalibrationParameters ( const CObservation3DRangeScan obs,
mrpt::img::TCamera out_camParams,
const double  camera_offset = 0.01
)
static

A Levenberg-Marquart-based optimizer to recover the calibration parameters of a 3D camera given a range (depth) image and the corresponding 3D point cloud.

Parameters
camera_offsetThe offset (in meters) in the +X direction of the point cloud. It's 1cm for SwissRanger SR4000.
Returns
The final average reprojection error per pixel (typ <0.05 px)

Definition at line 721 of file CObservation3DRangeScan.cpp.

References ASSERT_, CALIB_DECIMAT, mrpt::obs::detail::cam2vec(), mrpt::obs::detail::cost_func(), mrpt::img::TCamera::focalLengthMeters, hasPoints3D, hasRangeImage, mrpt::img::TCamera::intrinsicParams, mrpt::system::LVL_INFO, MRPT_END, MRPT_START, mrpt::img::TCamera::ncols, mrpt::img::TCamera::nrows, points3D_x, points3D_y, points3D_z, rangeImage, mrpt::square(), and mrpt::obs::detail::vec2cam().

◆ resizePoints3DVectors()

◆ serializeFrom()

void CObservation3DRangeScan::serializeFrom ( mrpt::serialization::CArchive in,
uint8_t  serial_version
)
overrideprotectedvirtual

Pure virtual method for reading (deserializing) from an abstract archive.

Users don't call this method directly. Instead, use stream >> object;.

Parameters
inThe input binary stream where the object data must read from.
versionThe version of the object stored in the stream: use this version number in your code to know how to read the incoming data.
Exceptions
std::exceptionOn any I/O error

Implements mrpt::serialization::CSerializable.

Definition at line 255 of file CObservation3DRangeScan.cpp.

References cameraParams, cameraParamsIntensity, CH_VISIBLE, confidenceImage, hasConfidenceImage, hasIntensityImage, hasPoints3D, hasRangeImage, intensityImage, intensityImageChannel, m_points3D_external_file, m_points3D_external_stored, m_rangeImage_external_file, m_rangeImage_external_stored, maxRange, MRPT_THROW_UNKNOWN_SERIALIZATION_VERSION, pixelLabels, points3D_idxs_x, points3D_idxs_y, points3D_x, points3D_y, points3D_z, range_is_depth, rangeImage, rangeImage_setSize(), mrpt::obs::CObservation3DRangeScan::TPixelLabelInfoBase::readAndBuildFromStream(), relativePoseIntensityWRTDepth, resizePoints3DVectors(), mrpt::obs::CObservation::sensorLabel, sensorPose, stdError, and mrpt::obs::CObservation::timestamp.

◆ serializeGetVersion()

uint8_t CObservation3DRangeScan::serializeGetVersion ( ) const
overrideprotectedvirtual

Must return the current versioning number of the object.

Start in zero for new classes, and increments each time there is a change in the stored format.

Implements mrpt::serialization::CSerializable.

Definition at line 196 of file CObservation3DRangeScan.cpp.

◆ serializeTo()

◆ setSensorPose() [1/2]

void CObservation::setSensorPose ( const mrpt::math::TPose3D newSensorPose)
inherited

A general method to change the sensor pose on the robot.

Note that most sensors will use the full (6D) CPose3D, but see the derived classes for more details or special cases.

See also
getSensorPose

Definition at line 33 of file CObservation.cpp.

◆ setSensorPose() [2/2]

void mrpt::obs::CObservation3DRangeScan::setSensorPose ( const mrpt::poses::CPose3D newSensorPose)
inlineoverridevirtual

A general method to change the sensor pose on the robot.

Note that most sensors will use the full (6D) CPose3D, but see the derived classes for more details or special cases.

See also
getSensorPose

Implements mrpt::obs::CObservation.

Definition at line 757 of file CObservation3DRangeScan.h.

References sensorPose.

◆ swap() [1/2]

void CObservation::swap ( CObservation o)
protectedinherited

Swap with another observation, ONLY the data defined here in the base class CObservation.

It's protected since it'll be only called from child classes that should know what else to swap appart from these common data.

Definition at line 38 of file CObservation.cpp.

References mrpt::obs::CObservation::sensorLabel, and mrpt::obs::CObservation::timestamp.

Referenced by mrpt::obs::CObservationStereoImages::swap(), and swap().

◆ swap() [2/2]

◆ unload()

void CObservation3DRangeScan::unload ( )
overridevirtual

Unload all images, for the case they being delayed-load images stored in external files (othewise, has no effect).

See also
load

Reimplemented from mrpt::obs::CObservation.

Definition at line 480 of file CObservation3DRangeScan.cpp.

References confidenceImage, hasPoints3D, hasRangeImage, intensityImage, m_points3D_external_stored, m_rangeImage_external_stored, points3D_x, points3D_y, points3D_z, rangeImage, mrpt::img::CImage::unload(), and mrpt::vector_strong_clear().

◆ writeToMatlab()

virtual mxArray* mrpt::serialization::CSerializable::writeToMatlab ( ) const
inlinevirtualinherited

Introduces a pure virtual method responsible for writing to a mxArray Matlab object, typically a MATLAB struct whose contents are documented in each derived class.

Returns
A new mxArray (caller is responsible of memory freeing) or nullptr is class does not support conversion to MATLAB.

Definition at line 68 of file CSerializable.h.

Member Data Documentation

◆ _init_CObservation3DRangeScan

mrpt::rtti::CLASSINIT mrpt::obs::CObservation3DRangeScan::_init_CObservation3DRangeScan
staticprotected

Definition at line 229 of file CObservation3DRangeScan.h.

◆ cameraParams

◆ cameraParamsIntensity

◆ className

constexpr const char* mrpt::obs::CObservation3DRangeScan::className = "CObservation3DRangeScan"
static

Definition at line 229 of file CObservation3DRangeScan.h.

◆ confidenceImage

mrpt::img::CImage mrpt::obs::CObservation3DRangeScan::confidenceImage

If hasConfidenceImage=true, an image with the "confidence" value [range 0-255] as estimated by the capture drivers.

Definition at line 517 of file CObservation3DRangeScan.h.

Referenced by getDescriptionAsText(), mrpt::hwdrivers::CSwissRanger3DCamera::getNextObservation(), getZoneAsObs(), serializeFrom(), serializeTo(), swap(), and unload().

◆ hasConfidenceImage

bool mrpt::obs::CObservation3DRangeScan::hasConfidenceImage

true means the field confidenceImage contains valid data

Definition at line 514 of file CObservation3DRangeScan.h.

Referenced by getDescriptionAsText(), mrpt::hwdrivers::CSwissRanger3DCamera::getNextObservation(), getZoneAsObs(), serializeFrom(), serializeTo(), and swap().

◆ hasIntensityImage

◆ hasPoints3D

◆ hasRangeImage

◆ intensityImage

◆ intensityImageChannel

TIntensityChannelID mrpt::obs::CObservation3DRangeScan::intensityImageChannel

The source of the intensityImage; typically the visible channel.

See also
TIntensityChannelID

Definition at line 508 of file CObservation3DRangeScan.h.

Referenced by getDescriptionAsText(), getZoneAsObs(), serializeFrom(), serializeTo(), and swap().

◆ m_points3D_external_file

std::string mrpt::obs::CObservation3DRangeScan::m_points3D_external_file
protected

3D points are in CImage::getImagesPathBase()+<this_file_name>

Definition at line 235 of file CObservation3DRangeScan.h.

Referenced by points3D_convertToExternalStorage(), points3D_getExternalStorageFile(), points3D_getExternalStorageFileAbsolutePath(), serializeFrom(), serializeTo(), and swap().

◆ m_points3D_external_stored

bool mrpt::obs::CObservation3DRangeScan::m_points3D_external_stored
protected

If set to true, m_points3D_external_file is valid.

Definition at line 233 of file CObservation3DRangeScan.h.

Referenced by load(), points3D_convertToExternalStorage(), points3D_isExternallyStored(), serializeFrom(), serializeTo(), swap(), and unload().

◆ m_rangeImage_external_file

std::string mrpt::obs::CObservation3DRangeScan::m_rangeImage_external_file
protected

rangeImage is in CImage::getImagesPathBase()+<this_file_name>

Definition at line 240 of file CObservation3DRangeScan.h.

Referenced by rangeImage_convertToExternalStorage(), rangeImage_getExternalStorageFile(), rangeImage_getExternalStorageFileAbsolutePath(), serializeFrom(), serializeTo(), and swap().

◆ m_rangeImage_external_stored

bool mrpt::obs::CObservation3DRangeScan::m_rangeImage_external_stored
protected

◆ maxRange

float mrpt::obs::CObservation3DRangeScan::maxRange

The maximum range allowed by the device, in meters (e.g.

8.0m, 5.0m,...)

Definition at line 744 of file CObservation3DRangeScan.h.

Referenced by convertTo2DScan(), getDescriptionAsText(), mrpt::hwdrivers::CSwissRanger3DCamera::getNextObservation(), getZoneAsObs(), serializeFrom(), serializeTo(), and swap().

◆ pixelLabels

TPixelLabelInfoBase::Ptr mrpt::obs::CObservation3DRangeScan::pixelLabels

All information about pixel labeling is stored in this (smart pointer to) structure; refer to TPixelLabelInfo for details on the contents User is responsible of creating a new object of the desired data type.

It will be automatically (de)serialized no matter its specific type.

Definition at line 715 of file CObservation3DRangeScan.h.

Referenced by getDescriptionAsText(), hasPixelLabels(), serializeFrom(), serializeTo(), and swap().

◆ points3D_idxs_x

std::vector<uint16_t> mrpt::obs::CObservation3DRangeScan::points3D_idxs_x

If hasPoints3D=true, the (x,y) pixel coordinates for each (X,Y,Z) point in points3D_x, points3D_y, points3D_z.

Definition at line 405 of file CObservation3DRangeScan.h.

Referenced by mempool_donate_xyz_buffers(), points3D_convertToExternalStorage(), mrpt::obs::detail::project3DPointsFromDepthImageInto(), resizePoints3DVectors(), serializeFrom(), serializeTo(), and swap().

◆ points3D_idxs_y

◆ points3D_x

◆ points3D_y

◆ points3D_z

◆ range_is_depth

bool mrpt::obs::CObservation3DRangeScan::range_is_depth

true: Kinect-like ranges: entries of rangeImage are distances along the +X axis; false: Ranges in rangeImage are actual distances in 3D.

Definition at line 451 of file CObservation3DRangeScan.h.

Referenced by mrpt::hwdrivers::CSwissRanger3DCamera::getNextObservation(), mrpt::obs::detail::project3DPointsFromDepthImageInto(), serializeFrom(), and serializeTo().

◆ rangeImage

◆ relativePoseIntensityWRTDepth

mrpt::poses::CPose3D mrpt::obs::CObservation3DRangeScan::relativePoseIntensityWRTDepth

Relative pose of the intensity camera wrt the depth camera (which is the coordinates origin for this observation).

In a SwissRanger camera, this will be (0,0,0,-90deg,0,-90deg) since both cameras coincide. In a Kinect, this will include a small lateral displacement and a rotation, according to the drawing on the top of this page.

See also
doDepthAndIntensityCamerasCoincide

Definition at line 734 of file CObservation3DRangeScan.h.

Referenced by doDepthAndIntensityCamerasCoincide(), getDescriptionAsText(), mrpt::hwdrivers::COpenNI2Sensor::getNextObservation(), mrpt::hwdrivers::CKinect::getNextObservation(), mrpt::maps::detail::pointmap_traits< CColouredPointsMap >::internal_loadFromRangeScan3D_init(), mrpt::maps::detail::pointmap_traits< CColouredPointsMap >::internal_loadFromRangeScan3D_prepareOneRange(), mrpt::obs::detail::project3DPointsFromDepthImageInto(), serializeFrom(), serializeTo(), and swap().

◆ runtimeClassId

const mrpt::rtti::TRuntimeClassId mrpt::obs::CObservation3DRangeScan::runtimeClassId
staticprotected

Definition at line 229 of file CObservation3DRangeScan.h.

◆ sensorLabel

◆ sensorPose

◆ stdError

float mrpt::obs::CObservation3DRangeScan::stdError

The "sigma" error of the device in meters, used while inserting the scan in an occupancy grid.

Definition at line 749 of file CObservation3DRangeScan.h.

Referenced by mrpt::hwdrivers::CSwissRanger3DCamera::getNextObservation(), getZoneAsObs(), serializeFrom(), serializeTo(), and swap().

◆ timestamp

mrpt::system::TTimeStamp mrpt::obs::CObservation::timestamp {mrpt::system::now()}
inherited

The associated UTC time-stamp.

Where available, this should contain the accurate satellite-based timestamp of the sensor reading.

See also
getOriginalReceivedTimeStamp(), getTimeStamp()

Definition at line 60 of file CObservation.h.

Referenced by convertTo2DScan(), mrpt::hwdrivers::CSICKTim561Eth::decodeScan(), mrpt::hwdrivers::CLMS100Eth::decodeScan(), mrpt::detectors::CObjectDetection::detectObjects(), mrpt::hwdrivers::CRaePID::doProcess(), mrpt::hwdrivers::CGPSInterface::doProcess(), mrpt::hwdrivers::CRoboPeakLidar::doProcessSimple(), mrpt::hwdrivers::CSickLaserUSB::doProcessSimple(), mrpt::hwdrivers::CCANBusReader::doProcessSimple(), mrpt::hwdrivers::CSickLaserSerial::doProcessSimple(), mrpt::hwdrivers::CHokuyoURG::doProcessSimple(), mrpt::hwdrivers::CGPSInterface::flushParsedMessagesNow(), mrpt::hwdrivers::CRaePID::getFullInfo(), mrpt::hwdrivers::CSwissRanger3DCamera::getNextObservation(), mrpt::hwdrivers::COpenNI2_RGBD360::getNextObservation(), mrpt::hwdrivers::CKinect::getNextObservation(), mrpt::hwdrivers::CBoardSonars::getObservation(), mrpt::hwdrivers::CWirelessPower::getObservation(), mrpt::hwdrivers::CEnoseModular::getObservation(), mrpt::hwdrivers::CImageGrabber_OpenCV::getObservation(), mrpt::hwdrivers::CBoardENoses::getObservation(), mrpt::hwdrivers::CPhidgetInterfaceKitProximitySensors::getObservation(), mrpt::hwdrivers::CImageGrabber_dc1394::getObservation(), mrpt::hwdrivers::CImageGrabber_FlyCapture2::getObservation(), mrpt::hwdrivers::CDUO3DCamera::getObservations(), mrpt::obs::CObservation::getOriginalReceivedTimeStamp(), mrpt::obs::CObservation::getTimeStamp(), mrpt::hwdrivers::CNationalInstrumentsDAQ::grabbing_thread(), mrpt::maps::CLandmarksMap::loadOccupancyFeaturesFrom2DRangeScan(), mrpt::maps::CLandmarksMap::loadSiftFeaturesFromImageObservation(), mrpt::maps::CLandmarksMap::loadSiftFeaturesFromStereoImageObservation(), mrpt::hwdrivers::CGPSInterface::parse_NMEA(), mrpt::obs::CObservation6DFeatures::serializeFrom(), serializeFrom(), mrpt::obs::CObservation6DFeatures::serializeTo(), serializeTo(), mrpt::maps::CLandmarksMap::simulateBeaconReadings(), mrpt::maps::CLandmarksMap::simulateRangeBearingReadings(), mrpt::obs::CObservation::swap(), and velodyne_scan_to_pointcloud().




Page generated by Doxygen 1.8.14 for MRPT 1.9.9 Git: 7d5e6d718 Fri Aug 24 01:51:28 2018 +0200 at lun nov 2 08:35:50 CET 2020
