mrpt::obs::CObservationStereoImages Class Reference

Detailed Description

Observation class for either a pair of left+right or left+disparity images from a stereo camera.

To find whether the observation contains a right image and/or a disparity image, see the fields hasImageDisparity and hasImageRight, respectively. This figure illustrates the coordinate frames involved in this class:

Note

The images stored in this class can be raw or undistorted images. In the latter case, the "distortion" params of the corresponding "leftCamera" and "rightCamera" fields should be all zeros.

See also

CObservation

Definition at line 39 of file CObservationStereoImages.h.

#include <mrpt/obs/CObservationStereoImages.h>

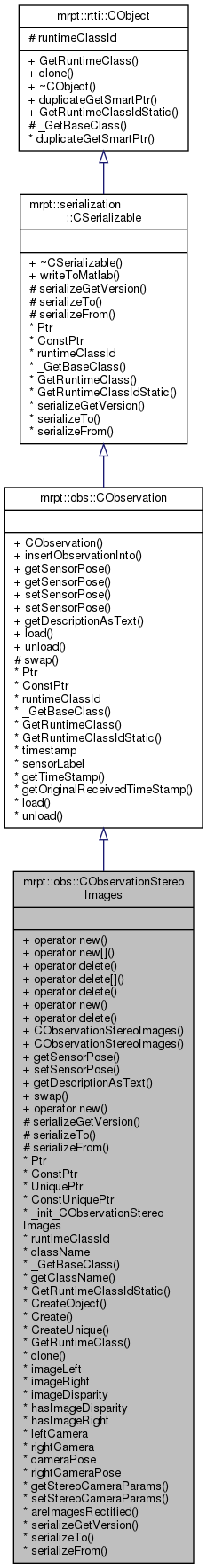

Inheritance diagram for mrpt::obs::CObservationStereoImages:

Public Member Functions
void *	operator new (size_t size)
void *	operator new[] (size_t size)
void	operator delete (void *ptr) noexcept
void	operator delete[] (void *ptr) noexcept
void	operator delete (void *memory, void *ptr) noexcept
void *	operator new (size_t size, const std::nothrow_t &) noexcept
void	operator delete (void *ptr, const std::nothrow_t &) noexcept
	CObservationStereoImages ()=default
	CObservationStereoImages (void *iplImageLeft, void *iplImageRight, void *iplImageDisparity=nullptr, bool ownMemory=false)
	Constructor from "IplImage*" images, which could be NULL. More...
void	getSensorPose (mrpt::poses::CPose3D &out_sensorPose) const override
	A general method to retrieve the sensor pose on the robot. More...
void	setSensorPose (const mrpt::poses::CPose3D &newSensorPose) override
	A general method to change the sensor pose on the robot. More...
void	getDescriptionAsText (std::ostream &o) const override
	Build a detailed, multi-line textual description of the observation contents and dump it to the output stream. More...
void	swap (CObservationStereoImages &o)
	Do an efficient swap of all data members of this object with "o". More...
template<class METRICMAP >
bool	insertObservationInto (METRICMAP *theMap, const mrpt::poses::CPose3D *robotPose=nullptr) const
	This method is equivalent to: More...
void	getSensorPose (mrpt::math::TPose3D &out_sensorPose) const
	A general method to retrieve the sensor pose on the robot. More...
void	setSensorPose (const mrpt::math::TPose3D &newSensorPose)
	A general method to change the sensor pose on the robot. More...
virtual mxArray *	writeToMatlab () const
	Introduces a pure virtual method responsible for writing to a mxArray Matlab object, typically a MATLAB struct whose contents are documented in each derived class. More...
Delayed-load manual control methods.
virtual void	load () const
	Makes sure all images and other fields which may be externally stored are loaded in memory. More...
virtual void	unload ()
	Unload all images, for the case they being delayed-load images stored in external files (othewise, has no effect). More...
RTTI classes and functions for polymorphic hierarchies
mrpt::rtti::CObject::Ptr	duplicateGetSmartPtr () const
	Returns a copy of the object, indepently of its class, as a smart pointer (the newly created object will exist as long as any copy of this smart pointer). More...

Static Public Member Functions
static void *	operator new (size_t size, void *ptr)

Protected Member Functions
void	swap (CObservation &o)
	Swap with another observation, ONLY the data defined here in the base class CObservation. More...
CSerializable virtual methods
uint8_t	serializeGetVersion () const override
	Must return the current versioning number of the object. More...
void	serializeTo (mrpt::serialization::CArchive &out) const override
	Pure virtual method for writing (serializing) to an abstract archive. More...
void	serializeFrom (mrpt::serialization::CArchive &in, uint8_t serial_version) override
	Pure virtual method for reading (deserializing) from an abstract archive. More...

Data common to any observation
mrpt::system::TTimeStamp	timestamp {mrpt::system::now()}
	The associated UTC time-stamp. More...
std::string	sensorLabel
	An arbitrary label that can be used to identify the sensor. More...
mrpt::system::TTimeStamp	getTimeStamp () const
	Returns CObservation::timestamp for all kind of observations. More...
virtual mrpt::system::TTimeStamp	getOriginalReceivedTimeStamp () const
	By default, returns CObservation::timestamp but in sensors capable of satellite (or otherwise) accurate UTC timing of readings, this contains the computer-based timestamp of reception, which may be slightly different than timestamp. More...

RTTI stuff
using	Ptr = std::shared_ptr< CObservationStereoImages >
using	ConstPtr = std::shared_ptr< const CObservationStereoImages >
using	UniquePtr = std::unique_ptr< CObservationStereoImages >
using	ConstUniquePtr = std::unique_ptr< const CObservationStereoImages >
static mrpt::rtti::CLASSINIT	_init_CObservationStereoImages
static const mrpt::rtti::TRuntimeClassId	runtimeClassId
static constexpr const char *	className = "CObservationStereoImages"
static const mrpt::rtti::TRuntimeClassId *	_GetBaseClass ()
static constexpr auto	getClassName ()
static const mrpt::rtti::TRuntimeClassId &	GetRuntimeClassIdStatic ()
static mrpt::rtti::CObject *	CreateObject ()
template<typename... Args>
static Ptr	Create (Args &&... args)
template<typename... Args>
static UniquePtr	CreateUnique (Args &&... args)
virtual const mrpt::rtti::TRuntimeClassId *	GetRuntimeClass () const override
	Returns information about the class of an object in runtime. More...
virtual mrpt::rtti::CObject *	clone () const override
	Returns a deep copy (clone) of the object, indepently of its class. More...

Main observation data members
mrpt::img::CImage	imageLeft
	Image from the left camera (this image will be ALWAYS present) More...
mrpt::img::CImage	imageRight
	Image from the right camera, only contains a valid image if hasImageRight == true. More...
mrpt::img::CImage	imageDisparity
	Disparity image, only contains a valid image if hasImageDisparity == true. More...
bool	hasImageDisparity {false}
	Whether imageDisparity actually contains data (Default upon construction: false) More...
bool	hasImageRight {false}
	Whether imageRight actually contains data (Default upon construction: true) More...
mrpt::img::TCamera	leftCamera
	Parameters for the left/right cameras: individual intrinsic and distortion parameters of the cameras. More...
mrpt::img::TCamera	rightCamera
mrpt::poses::CPose3DQuat	cameraPose
	The pose of the LEFT camera, relative to the robot. More...
mrpt::poses::CPose3DQuat	rightCameraPose
	The pose of the right camera, relative to the left one: Note that using the conventional reference coordinates for the left camera (x points to the right, y down), the "right" camera is situated at position (BL, 0, 0) with yaw=pitch=roll=0, where BL is the BASELINE. More...
void	getStereoCameraParams (mrpt::img::TStereoCamera &out_params) const
	Populates a TStereoCamera structure with the parameters in leftCamera, rightCamera and rightCameraPose. More...
void	setStereoCameraParams (const mrpt::img::TStereoCamera &in_params)
	Sets leftCamera, rightCamera and rightCameraPose from a TStereoCamera structure. More...
bool	areImagesRectified () const
	This method only checks whether ALL the distortion parameters in leftCamera are set to zero, which is the convention in MRPT to denote that this pair of stereo images has been rectified. More...

Member Typedef Documentation

ConstPtr

using mrpt::obs::CObservationStereoImages::ConstPtr = std::shared_ptr<const CObservationStereoImages >

Definition at line 41 of file CObservationStereoImages.h.

ConstUniquePtr

using mrpt::obs::CObservationStereoImages::ConstUniquePtr = std::unique_ptr<const CObservationStereoImages >

Definition at line 41 of file CObservationStereoImages.h.

Ptr

using mrpt::obs::CObservationStereoImages::Ptr = std::shared_ptr< CObservationStereoImages >

A type for the associated smart pointer

Definition at line 41 of file CObservationStereoImages.h.

UniquePtr

using mrpt::obs::CObservationStereoImages::UniquePtr = std::unique_ptr< CObservationStereoImages >

Definition at line 41 of file CObservationStereoImages.h.

Constructor & Destructor Documentation

CObservationStereoImages() [1/2]

mrpt::obs::CObservationStereoImages::CObservationStereoImages ( )

default

CObservationStereoImages() [2/2]

CObservationStereoImages::CObservationStereoImages	(	void *	iplImageLeft,
		void *	iplImageRight,
		void *	iplImageDisparity = nullptr,
		bool	ownMemory = false
	)

Constructor from "IplImage*" images, which could be NULL.

The fields hasImageDisparity and hasImageRight will be set to true/false depending on them being !=nullptr. Note that the IplImage's will be COPIED, so it's still the caller's reponsibility to free the original images, unless ownMemory is set to true: in that case the IplImage pointers are copied and those IplImage's will be automatically freed by this object.

Definition at line 31 of file CObservationStereoImages.cpp.

Member Function Documentation

_GetBaseClass()

static const mrpt::rtti::TRuntimeClassId* mrpt::obs::CObservationStereoImages::_GetBaseClass ( )

staticprotected

areImagesRectified()

bool CObservationStereoImages::areImagesRectified

(

)

const

This method only checks whether ALL the distortion parameters in leftCamera are set to zero, which is the convention in MRPT to denote that this pair of stereo images has been rectified.

Definition at line 217 of file CObservationStereoImages.cpp.

clone()

virtual mrpt::rtti::CObject* mrpt::obs::CObservationStereoImages::clone ( ) const

overridevirtual

Returns a deep copy (clone) of the object, indepently of its class.

Implements mrpt::rtti::CObject.

Create()

template<typename... Args>

static Ptr mrpt::obs::CObservationStereoImages::Create ( Args &&...  args )

inlinestatic

Definition at line 41 of file CObservationStereoImages.h.

CreateObject()

static mrpt::rtti::CObject* mrpt::obs::CObservationStereoImages::CreateObject ( )

static

CreateUnique()

template<typename... Args>

static UniquePtr mrpt::obs::CObservationStereoImages::CreateUnique ( Args &&...  args )

inlinestatic

Definition at line 41 of file CObservationStereoImages.h.

duplicateGetSmartPtr()

mrpt::rtti::CObject::Ptr CObject::duplicateGetSmartPtr ( ) const

inlineinherited

Returns a copy of the object, indepently of its class, as a smart pointer (the newly created object will exist as long as any copy of this smart pointer).

Definition at line 168 of file CObject.h.

References mrpt::rtti::CObject::clone().

Referenced by mrpt::obs::CRawlog::addActions(), and mrpt::obs::CRawlog::addObservations().

getClassName()

static constexpr auto mrpt::obs::CObservationStereoImages::getClassName ( )

inlinestatic

Definition at line 41 of file CObservationStereoImages.h.

getDescriptionAsText()

void CObservationStereoImages::getDescriptionAsText ( std::ostream &  o ) const

overridevirtual

Build a detailed, multi-line textual description of the observation contents and dump it to the output stream.

Note

If overried by derived classes, call base CObservation::getDescriptionAsText() first to show common information.

This is the text that appears in RawLogViewer when selecting an object in the dataset

Reimplemented from mrpt::obs::CObservation.

Definition at line 243 of file CObservationStereoImages.cpp.

References mrpt::img::TStereoCamera::dumpAsText(), mrpt::format(), mrpt::obs::CObservation::getDescriptionAsText(), and mrpt::img::TStereoCamera::rightCameraPose.

getOriginalReceivedTimeStamp()

virtual mrpt::system::TTimeStamp mrpt::obs::CObservation::getOriginalReceivedTimeStamp ( ) const

inlinevirtualinherited

By default, returns CObservation::timestamp but in sensors capable of satellite (or otherwise) accurate UTC timing of readings, this contains the computer-based timestamp of reception, which may be slightly different than timestamp.

See also

getTimeStamp()

Reimplemented in mrpt::obs::CObservationGPS, and mrpt::obs::CObservationVelodyneScan.

Definition at line 71 of file CObservation.h.

References mrpt::obs::CObservation::timestamp.

GetRuntimeClass()

virtual const mrpt::rtti::TRuntimeClassId* mrpt::obs::CObservationStereoImages::GetRuntimeClass ( ) const

overridevirtual

Returns information about the class of an object in runtime.

Reimplemented from mrpt::obs::CObservation.

GetRuntimeClassIdStatic()

static const mrpt::rtti::TRuntimeClassId& mrpt::obs::CObservationStereoImages::GetRuntimeClassIdStatic ( )

static

getSensorPose() [1/2]

void CObservation::getSensorPose ( mrpt::math::TPose3D &  out_sensorPose ) const

inherited

A general method to retrieve the sensor pose on the robot.

Note that most sensors will return a full (6D) CPose3D, but see the derived classes for more details or special cases.

See also

setSensorPose

Definition at line 26 of file CObservation.cpp.

getSensorPose() [2/2]

void mrpt::obs::CObservationStereoImages::getSensorPose ( mrpt::poses::CPose3D &  out_sensorPose ) const

inlineoverridevirtual

A general method to retrieve the sensor pose on the robot.

Note that most sensors will return a full (6D) CPose3D, but see the derived classes for more details or special cases.

See also

setSensorPose

Implements mrpt::obs::CObservation.

Definition at line 123 of file CObservationStereoImages.h.

References cameraPose.

getStereoCameraParams()

void CObservationStereoImages::getStereoCameraParams

(

mrpt::img::TStereoCamera &

out_params

)

const

Populates a TStereoCamera structure with the parameters in leftCamera, rightCamera and rightCameraPose.

See also

areImagesRectified()

Definition at line 194 of file CObservationStereoImages.cpp.

References mrpt::img::TStereoCamera::leftCamera, mrpt::img::TStereoCamera::rightCamera, and mrpt::img::TStereoCamera::rightCameraPose.

Referenced by mrpt::vision::CStereoRectifyMap::setFromCamParams().

getTimeStamp()

mrpt::system::TTimeStamp mrpt::obs::CObservation::getTimeStamp ( ) const

inlineinherited

Returns CObservation::timestamp for all kind of observations.

See also

getOriginalReceivedTimeStamp()

Definition at line 66 of file CObservation.h.

References mrpt::obs::CObservation::timestamp.

insertObservationInto()

template<class METRICMAP >

bool mrpt::obs::CObservation::insertObservationInto ( METRICMAP *  theMap, const mrpt::poses::CPose3D *  robotPose = nullptr  ) const

inlineinherited

This method is equivalent to:

map->insertObservation(this, robotPose)

Parameters

theMap	The map where this observation is to be inserted: the map will be updated.
robotPose	The pose of the robot base for this observation, relative to the target metric map. Set to nullptr (default) to use (0,0,0deg)

Returns

Returns true if the map has been updated, or false if this observations has nothing to do with a metric map (for example, a sound observation).

See: Maps and observations compatibility matrix

See also

CMetricMap, CMetricMap::insertObservation

Definition at line 99 of file CObservation.h.

Referenced by mrpt::maps::COccupancyGridMap2D::computeObservationLikelihood_CellsDifference().

load()

virtual void mrpt::obs::CObservation::load ( ) const

inlinevirtualinherited

Makes sure all images and other fields which may be externally stored are loaded in memory.

Note that for all CImages, calling load() is not required since the images will be automatically loaded upon first access, so load() shouldn't be needed to be called in normal cases by the user. If all the data were alredy loaded or this object has no externally stored data fields, calling this method has no effects.

See also

unload

Reimplemented in mrpt::obs::CObservation3DRangeScan.

Definition at line 154 of file CObservation.h.

operator delete() [1/3]

void mrpt::obs::CObservationStereoImages::operator delete ( void *  ptr, const std::nothrow_t &    )

inlinenoexcept

Definition at line 41 of file CObservationStereoImages.h.

operator delete() [2/3]

void mrpt::obs::CObservationStereoImages::operator delete ( void *  ptr )

inlinenoexcept

Definition at line 41 of file CObservationStereoImages.h.

operator delete() [3/3]

void mrpt::obs::CObservationStereoImages::operator delete ( void *  memory, void *  ptr  )

inlinenoexcept

Definition at line 41 of file CObservationStereoImages.h.

operator delete[]()

void mrpt::obs::CObservationStereoImages::operator delete[] ( void *  ptr )

inlinenoexcept

Definition at line 41 of file CObservationStereoImages.h.

operator new() [1/3]

void* mrpt::obs::CObservationStereoImages::operator new ( size_t  size, const std::nothrow_t &    )

inlinenoexcept

Definition at line 41 of file CObservationStereoImages.h.

operator new() [2/3]

void* mrpt::obs::CObservationStereoImages::operator new ( size_t  size )

inline

Definition at line 41 of file CObservationStereoImages.h.

operator new() [3/3]

static void* mrpt::obs::CObservationStereoImages::operator new ( size_t  size, void *  ptr  )

inlinestatic

Definition at line 41 of file CObservationStereoImages.h.

operator new[]()

void* mrpt::obs::CObservationStereoImages::operator new[] ( size_t  size )

inline

Definition at line 41 of file CObservationStereoImages.h.

serializeFrom()

void CObservationStereoImages::serializeFrom ( mrpt::serialization::CArchive &  in, uint8_t  serial_version  )

overrideprotectedvirtual

Pure virtual method for reading (deserializing) from an abstract archive.

Users don't call this method directly. Instead, use stream >> object;.

Parameters

in	The input binary stream where the object data must read from.
version	The version of the object stored in the stream: use this version number in your code to know how to read the incoming data.

Exceptions

std::exception

On any I/O error

Implements mrpt::serialization::CSerializable.

Definition at line 65 of file CObservationStereoImages.cpp.

References INVALID_TIMESTAMP, and MRPT_THROW_UNKNOWN_SERIALIZATION_VERSION.

serializeGetVersion()

uint8_t CObservationStereoImages::serializeGetVersion ( ) const

overrideprotectedvirtual

Must return the current versioning number of the object.

Start in zero for new classes, and increments each time there is a change in the stored format.

Implements mrpt::serialization::CSerializable.

Definition at line 51 of file CObservationStereoImages.cpp.

serializeTo()

void CObservationStereoImages::serializeTo ( mrpt::serialization::CArchive &  out ) const

overrideprotectedvirtual

Pure virtual method for writing (serializing) to an abstract archive.

Users don't call this method directly. Instead, use stream << object;.

Exceptions

std::exception

On any I/O error

Implements mrpt::serialization::CSerializable.

Definition at line 52 of file CObservationStereoImages.cpp.

setSensorPose() [1/2]

void mrpt::obs::CObservationStereoImages::setSensorPose ( const mrpt::poses::CPose3D &  newSensorPose )

inlineoverridevirtual

A general method to change the sensor pose on the robot.

Note that most sensors will use the full (6D) CPose3D, but see the derived classes for more details or special cases.

See also

getSensorPose

Implements mrpt::obs::CObservation.

Definition at line 127 of file CObservationStereoImages.h.

References cameraPose.

setSensorPose() [2/2]

void CObservation::setSensorPose ( const mrpt::math::TPose3D &  newSensorPose )

inherited

A general method to change the sensor pose on the robot.

Note that most sensors will use the full (6D) CPose3D, but see the derived classes for more details or special cases.

See also

getSensorPose

Definition at line 33 of file CObservation.cpp.

setStereoCameraParams()

void CObservationStereoImages::setStereoCameraParams

(

const mrpt::img::TStereoCamera &

in_params

)

Sets leftCamera, rightCamera and rightCameraPose from a TStereoCamera structure.

Definition at line 204 of file CObservationStereoImages.cpp.

References mrpt::img::TStereoCamera::leftCamera, mrpt::img::TStereoCamera::rightCamera, and mrpt::img::TStereoCamera::rightCameraPose.

Referenced by mrpt::hwdrivers::CDUO3DCamera::getObservations(), and mrpt::vision::CStereoRectifyMap::rectify().

swap() [1/2]

void CObservation::swap ( CObservation &  o )

protectedinherited

Swap with another observation, ONLY the data defined here in the base class CObservation.

It's protected since it'll be only called from child classes that should know what else to swap appart from these common data.

Definition at line 38 of file CObservation.cpp.

References mrpt::obs::CObservation::sensorLabel, and mrpt::obs::CObservation::timestamp.

Referenced by swap(), and mrpt::obs::CObservation3DRangeScan::swap().

swap() [2/2]

void CObservationStereoImages::swap

(

CObservationStereoImages &

o

)

Do an efficient swap of all data members of this object with "o".

Definition at line 225 of file CObservationStereoImages.cpp.

References cameraPose, hasImageDisparity, hasImageRight, imageDisparity, imageLeft, imageRight, leftCamera, rightCamera, rightCameraPose, and mrpt::obs::CObservation::swap().

Referenced by mrpt::hwdrivers::CStereoGrabber_SVS::getStereoObservation().

unload()

virtual void mrpt::obs::CObservation::unload ( )

inlinevirtualinherited

Unload all images, for the case they being delayed-load images stored in external files (othewise, has no effect).

See also

load

Reimplemented in mrpt::obs::CObservation3DRangeScan.

Definition at line 161 of file CObservation.h.

writeToMatlab()

virtual mxArray* mrpt::serialization::CSerializable::writeToMatlab ( ) const

inlinevirtualinherited

Introduces a pure virtual method responsible for writing to a mxArray Matlab object, typically a MATLAB struct whose contents are documented in each derived class.

Returns

A new mxArray (caller is responsible of memory freeing) or nullptr is class does not support conversion to MATLAB.

Definition at line 68 of file CSerializable.h.

Member Data Documentation

_init_CObservationStereoImages

mrpt::rtti::CLASSINIT mrpt::obs::CObservationStereoImages::_init_CObservationStereoImages

staticprotected

Definition at line 41 of file CObservationStereoImages.h.

cameraPose

mrpt::poses::CPose3DQuat mrpt::obs::CObservationStereoImages::cameraPose

The pose of the LEFT camera, relative to the robot.

Definition at line 94 of file CObservationStereoImages.h.

Referenced by mrpt::hwdrivers::CImageGrabber_FlyCapture2::getObservation(), getSensorPose(), mrpt::maps::CLandmarksMap::loadSiftFeaturesFromStereoImageObservation(), mrpt::vision::CStereoRectifyMap::rectify(), setSensorPose(), mrpt::vision::StereoObs2BRObs(), and swap().

className

constexpr const char* mrpt::obs::CObservationStereoImages::className = "CObservationStereoImages"

static

Definition at line 41 of file CObservationStereoImages.h.

hasImageDisparity

bool mrpt::obs::CObservationStereoImages::hasImageDisparity {false}

Whether imageDisparity actually contains data (Default upon construction: false)

Definition at line 80 of file CObservationStereoImages.h.

Referenced by swap().

hasImageRight

bool mrpt::obs::CObservationStereoImages::hasImageRight {false}

Whether imageRight actually contains data (Default upon construction: true)

Definition at line 83 of file CObservationStereoImages.h.

Referenced by mrpt::vision::CStereoRectifyMap::rectify(), and swap().

imageDisparity

mrpt::img::CImage mrpt::obs::CObservationStereoImages::imageDisparity

Disparity image, only contains a valid image if hasImageDisparity == true.

The relation between the actual disparity and pixels and each value in this image is... ???????????

Definition at line 76 of file CObservationStereoImages.h.

Referenced by swap().

imageLeft

mrpt::img::CImage mrpt::obs::CObservationStereoImages::imageLeft

Image from the left camera (this image will be ALWAYS present)

See also

areImagesRectified()

Definition at line 66 of file CObservationStereoImages.h.

Referenced by mrpt::detectors::CCascadeClassifierDetection::detectObjects_Impl(), mrpt::hwdrivers::CImageGrabber_dc1394::getObservation(), mrpt::hwdrivers::CImageGrabber_FlyCapture2::getObservation(), mrpt::hwdrivers::CDUO3DCamera::getObservations(), mrpt::maps::CLandmarksMap::loadSiftFeaturesFromStereoImageObservation(), mrpt::vision::CStereoRectifyMap::rectify(), mrpt::vision::StereoObs2BRObs(), and swap().

imageRight

mrpt::img::CImage mrpt::obs::CObservationStereoImages::imageRight

Image from the right camera, only contains a valid image if hasImageRight == true.

See also

areImagesRectified()

Definition at line 70 of file CObservationStereoImages.h.

Referenced by mrpt::hwdrivers::CImageGrabber_dc1394::getObservation(), mrpt::hwdrivers::CImageGrabber_FlyCapture2::getObservation(), mrpt::hwdrivers::CDUO3DCamera::getObservations(), mrpt::maps::CLandmarksMap::loadSiftFeaturesFromStereoImageObservation(), mrpt::vision::CStereoRectifyMap::rectify(), mrpt::vision::StereoObs2BRObs(), and swap().

leftCamera

mrpt::img::TCamera mrpt::obs::CObservationStereoImages::leftCamera

Parameters for the left/right cameras: individual intrinsic and distortion parameters of the cameras.

See the tutorial for a discussion of these parameters.

See also

areImagesRectified(), getStereoCameraParams()

Definition at line 91 of file CObservationStereoImages.h.

Referenced by mrpt::hwdrivers::CImageGrabber_FlyCapture2::getObservation(), mrpt::maps::CLandmarksMap::loadSiftFeaturesFromStereoImageObservation(), mrpt::vision::StereoObs2BRObs(), and swap().

rightCamera

mrpt::img::TCamera mrpt::obs::CObservationStereoImages::rightCamera

Definition at line 91 of file CObservationStereoImages.h.

Referenced by mrpt::hwdrivers::CImageGrabber_FlyCapture2::getObservation(), and swap().

rightCameraPose

mrpt::poses::CPose3DQuat mrpt::obs::CObservationStereoImages::rightCameraPose

The pose of the right camera, relative to the left one: Note that using the conventional reference coordinates for the left camera (x points to the right, y down), the "right" camera is situated at position (BL, 0, 0) with yaw=pitch=roll=0, where BL is the BASELINE.

Definition at line 102 of file CObservationStereoImages.h.

Referenced by mrpt::hwdrivers::CImageGrabber_FlyCapture2::getObservation(), mrpt::maps::CLandmarksMap::loadSiftFeaturesFromStereoImageObservation(), mrpt::vision::CStereoRectifyMap::rectify(), mrpt::vision::StereoObs2BRObs(), and swap().

runtimeClassId

const mrpt::rtti::TRuntimeClassId mrpt::obs::CObservationStereoImages::runtimeClassId

staticprotected

Definition at line 41 of file CObservationStereoImages.h.

sensorLabel

std::string mrpt::obs::CObservation::sensorLabel

inherited

An arbitrary label that can be used to identify the sensor.

Definition at line 62 of file CObservation.h.

Referenced by mrpt::obs::CObservation3DRangeScan::convertTo2DScan(), mrpt::hwdrivers::CSICKTim561Eth::decodeScan(), mrpt::hwdrivers::CLMS100Eth::decodeScan(), mrpt::hwdrivers::CRaePID::doProcess(), mrpt::hwdrivers::CRoboPeakLidar::doProcessSimple(), mrpt::hwdrivers::CSickLaserUSB::doProcessSimple(), mrpt::hwdrivers::CCANBusReader::doProcessSimple(), mrpt::hwdrivers::CSickLaserSerial::doProcessSimple(), mrpt::hwdrivers::CHokuyoURG::doProcessSimple(), mrpt::hwdrivers::CGPSInterface::flushParsedMessagesNow(), mrpt::hwdrivers::CRaePID::getFullInfo(), mrpt::hwdrivers::CSwissRanger3DCamera::getNextObservation(), mrpt::hwdrivers::COpenNI2Sensor::getNextObservation(), mrpt::hwdrivers::CKinect::getNextObservation(), mrpt::hwdrivers::CBoardSonars::getObservation(), mrpt::hwdrivers::CWirelessPower::getObservation(), mrpt::hwdrivers::CImpinjRFID::getObservation(), mrpt::hwdrivers::CEnoseModular::getObservation(), mrpt::hwdrivers::CBoardENoses::getObservation(), mrpt::hwdrivers::CPhidgetInterfaceKitProximitySensors::getObservation(), mrpt::hwdrivers::CNationalInstrumentsDAQ::grabbing_thread(), mrpt::maps::CGasConcentrationGridMap2D::internal_insertObservation(), mrpt::obs::CObservation6DFeatures::serializeFrom(), mrpt::obs::CObservation3DRangeScan::serializeFrom(), mrpt::obs::CObservation6DFeatures::serializeTo(), mrpt::obs::CObservation3DRangeScan::serializeTo(), and mrpt::obs::CObservation::swap().

timestamp

mrpt::system::TTimeStamp mrpt::obs::CObservation::timestamp {mrpt::system::now()}

inherited

The associated UTC time-stamp.

Where available, this should contain the accurate satellite-based timestamp of the sensor reading.

See also

getOriginalReceivedTimeStamp(), getTimeStamp()

Definition at line 60 of file CObservation.h.

Referenced by mrpt::obs::CObservation3DRangeScan::convertTo2DScan(), mrpt::hwdrivers::CSICKTim561Eth::decodeScan(), mrpt::hwdrivers::CLMS100Eth::decodeScan(), mrpt::detectors::CObjectDetection::detectObjects(), mrpt::hwdrivers::CRaePID::doProcess(), mrpt::hwdrivers::CGPSInterface::doProcess(), mrpt::hwdrivers::CRoboPeakLidar::doProcessSimple(), mrpt::hwdrivers::CSickLaserUSB::doProcessSimple(), mrpt::hwdrivers::CCANBusReader::doProcessSimple(), mrpt::hwdrivers::CSickLaserSerial::doProcessSimple(), mrpt::hwdrivers::CHokuyoURG::doProcessSimple(), mrpt::hwdrivers::CGPSInterface::flushParsedMessagesNow(), mrpt::hwdrivers::CRaePID::getFullInfo(), mrpt::hwdrivers::CSwissRanger3DCamera::getNextObservation(), mrpt::hwdrivers::COpenNI2_RGBD360::getNextObservation(), mrpt::hwdrivers::CKinect::getNextObservation(), mrpt::hwdrivers::CBoardSonars::getObservation(), mrpt::hwdrivers::CWirelessPower::getObservation(), mrpt::hwdrivers::CEnoseModular::getObservation(), mrpt::hwdrivers::CImageGrabber_OpenCV::getObservation(), mrpt::hwdrivers::CBoardENoses::getObservation(), mrpt::hwdrivers::CPhidgetInterfaceKitProximitySensors::getObservation(), mrpt::hwdrivers::CImageGrabber_dc1394::getObservation(), mrpt::hwdrivers::CImageGrabber_FlyCapture2::getObservation(), mrpt::hwdrivers::CDUO3DCamera::getObservations(), mrpt::obs::CObservation::getOriginalReceivedTimeStamp(), mrpt::obs::CObservation::getTimeStamp(), mrpt::hwdrivers::CNationalInstrumentsDAQ::grabbing_thread(), mrpt::maps::CLandmarksMap::loadOccupancyFeaturesFrom2DRangeScan(), mrpt::maps::CLandmarksMap::loadSiftFeaturesFromImageObservation(), mrpt::maps::CLandmarksMap::loadSiftFeaturesFromStereoImageObservation(), mrpt::hwdrivers::CGPSInterface::parse_NMEA(), mrpt::obs::CObservation6DFeatures::serializeFrom(), mrpt::obs::CObservation3DRangeScan::serializeFrom(), mrpt::obs::CObservation6DFeatures::serializeTo(), mrpt::obs::CObservation3DRangeScan::serializeTo(), mrpt::maps::CLandmarksMap::simulateBeaconReadings(), mrpt::maps::CLandmarksMap::simulateRangeBearingReadings(), mrpt::obs::CObservation::swap(), and velodyne_scan_to_pointcloud().
